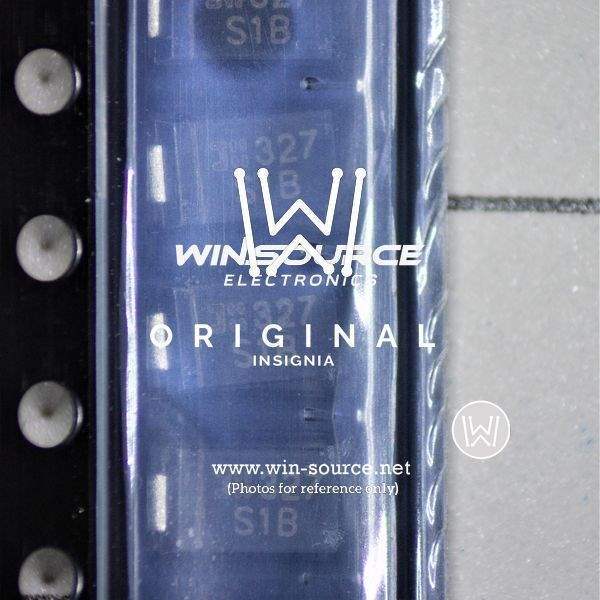

Introducing the S1B-13-F Rectifier Diode from Diodes Incorporated

Diodes Incorporated presents the S1B-13-F, a high-performance surface-mount rectifier diode designed to meet the rigorous demands of electronic applications requiring efficient power and signal management. This compact, robust diode is an ideal choice for a wide range of products, from power supplies to converters, and from adapters to lighting systems.

Key Features of the S1B-13-F:

• High Current Capability: The S1B-13-F is capable of sustaining a high forward surge current of 30A, making it suitable for applications that experience surge conditions.
• Low Forward Voltage Drop: With a low forward voltage drop, this diode ensures minimal power loss and improved efficiency, which is essential for maintaining the integrity of the overall system performance.
• Surface Mount Package: The S1B-13-F comes in a DO-214AA (SMB) package, which is optimized for automated assembly processes and saves valuable PCB space.
• High Reliability: Built to Diodes Incorporated's high-quality standards, the S1B-13-F offers excellent reliability in a variety of operating conditions, including a junction temperature range of -55°C to +150°C.
• RoHS Compliant: The product is environmentally friendly, meeting RoHS directives, which makes it suitable for use in green applications and in markets with strict environmental regulations.

Applications

The versatility of the S1B-13-F allows it to be integrated into numerous applications. It is particularly well-suited for:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• Automotive applications
• Consumer electronics

Technical Specifications:

• Package: DO-214AA (SMB)
• Peak Repetitive Reverse Voltage: 100V
• Average Rectified Output Current: 1A at TA = 75°C
• Operating Junction Temperature Range: -55°C to +150°C
• Forward Surge Current: 30A at 8.3ms single half sine-wave

With its combination of high efficiency, reliability, and compact form factor, the S1B-13-F from Diodes Incorporated is an excellent choice for designers who require a dependable rectifier diode that can withstand challenging electrical environments while maintaining optimal performance.
