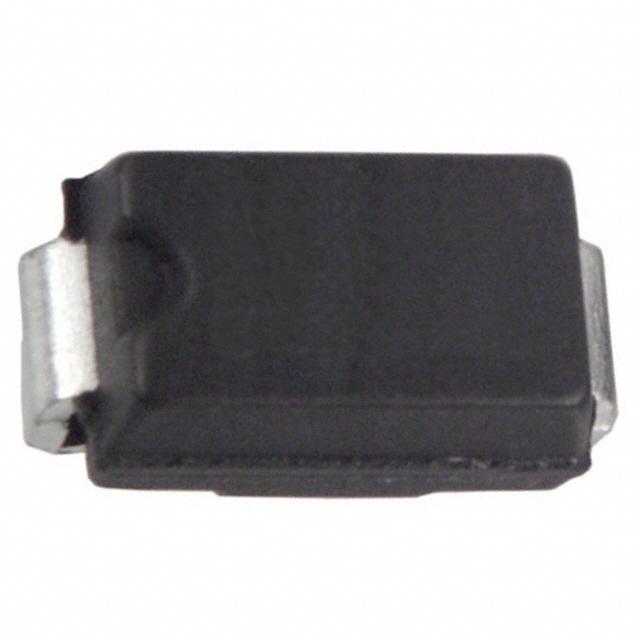

Product Overview: SBR1A40SA-13 from Diodes Incorporated

The SBR1A40SA-13 is a high-performance surface-mount Super Barrier Rectifier (SBR) designed and manufactured by Diodes Incorporated. This rectifier is tailored for applications demanding high efficiency, low power loss, and compact size. It is an ideal choice for use in power management tasks where space is at a premium and performance cannot be compromised.

Key Features

• Low Forward Voltage Drop: The device boasts an impressively low forward voltage drop, which enhances overall efficiency by reducing power loss during operation.
• High Surge Capability: With its robust surge handling capacity, the SBR1A40SA-13 can withstand transient over-voltage conditions, making it suitable for power supply applications that may experience surges.
• Super Barrier Technology: The SBR technology provides superior performance compared to traditional Schottky diodes, offering lower leakage current and improved thermal characteristics.
• PowerDI™ 123 Package: The compact PowerDI™ 123 package allows for efficient use of PCB space without compromising power handling capabilities.

Electrical Specifications

• Maximum Average Forward Current: 1A
• Peak Repetitive Reverse Voltage: 40V
• Operating Junction Temperature Range: -55°C to 150°C

Applications

The SBR1A40SA-13 is versatile and can be used across a wide range of applications. It is particularly well-suited for:

• LED Lighting
• Switching Power Supplies
• DC/DC Converters
• Freewheeling Diodes
• Reverse Battery Protection

Reliability & Compliance

Diodes Incorporated ensures that the SBR1A40SA-13 meets rigorous quality and reliability standards. The product is compliant with RoHS and Green standards, reflecting the company's commitment to environmental responsibility.

For engineers and designers looking for a rectifier that combines efficiency, durability, and compactness, the SBR1A40SA-13 from Diodes Incorporated stands out as a superior choice. Its cutting-edge SBR technology and adherence to high-quality standards make it a reliable component for modern electronic systems.
