Product Overview: SMAJ40CA-13-F by Diodes Incorporated

The SMAJ40CA-13-F is a robust transient voltage suppressor (TVS) diode designed by Diodes Incorporated to provide high-quality circuit protection. This electronic component is specifically engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD). With its bidirectional clamping feature and fast response time, the SMAJ40CA-13-F is an ideal solution for safeguarding voltage-sensitive components.

Key Features

• Transient Protection: The SMAJ40CA-13-F offers excellent transient voltage suppression capabilities, with a stand-off voltage of 40V, ensuring that devices are shielded from sudden surges.
• Peak Pulse Power: It can handle a peak pulse power of 400W (10/1000μs waveform), providing a high level of protection against peak pulse currents.

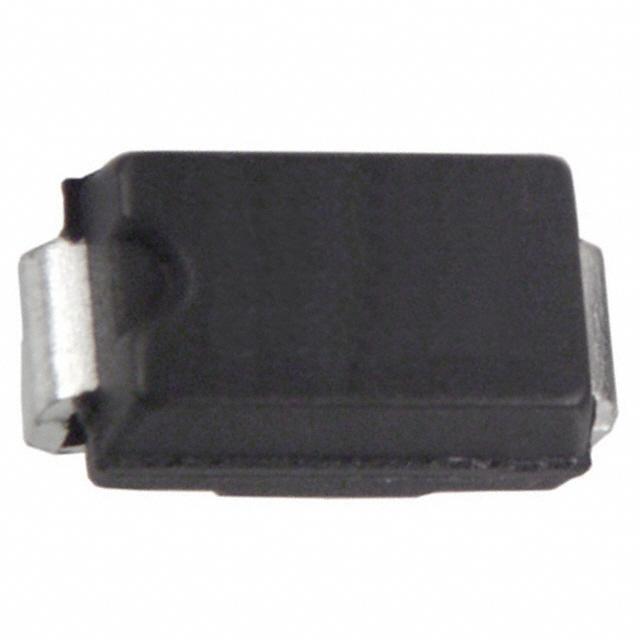

• Package: Housed in a compact SMA (DO-214AC) package, it is designed for space-constrained applications, while offering a low profile on printed circuit boards.
• RoHS Compliant: The component is fully RoHS compliant, making it suitable for use in environmentally-sensitive applications and adhering to regulatory requirements for hazardous substances.
• Temperature Range: It operates efficiently over a broad temperature range from -55°C to +150°C, ensuring reliability in various operating conditions.

Applications

With its ability to protect against high energy transients, the SMAJ40CA-13-F is widely used in a variety of applications, including:

• Portable Devices
• Power Supply Lines
• Communication Systems
• Automotive Electronics
• Industrial Control Systems

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the SMAJ40CA-13-F is no exception. It is manufactured to meet high industry standards, ensuring durability and consistent performance. The device is also characterized by its low leakage current and excellent clamping capability, which makes it a reliable choice for critical circuit protection needs.

Whether you're designing consumer electronics or industrial machinery, the SMAJ40CA-13-F from Diodes Incorporated is an excellent choice to enhance the longevity and reliability of your products by providing superior protection against voltage transients.
