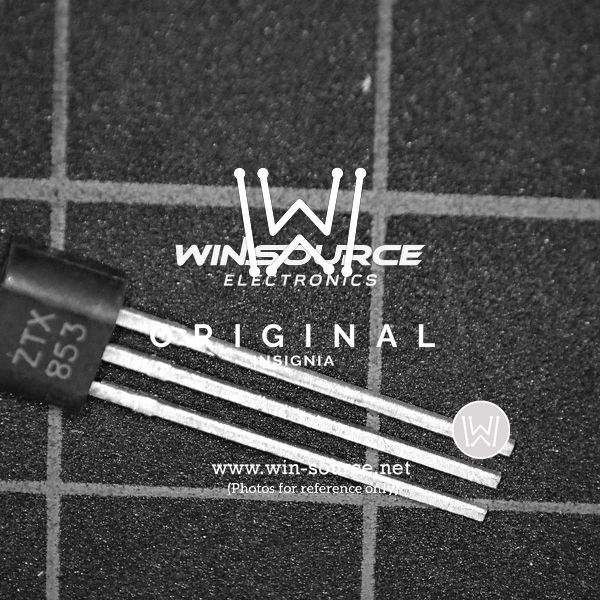

The ZTX853 is a high-performance bipolar NPN transistor from Diodes Incorporated, designed to deliver exceptional power and speed in a wide range of applications. This transistor is a part of the ZTX series, which is renowned for its high quality and reliability. The ZTX853 is particularly suited for audio amplifiers, switching circuits, and other high-power applications where efficiency and thermal performance are critical.

Key Features

• High Current Gain Bandwidth Product: With a transition frequency typically at 100MHz, the ZTX853 is ideal for high-speed switching and amplification, providing excellent signal amplification with minimal distortion.
• High Collector Current: It can handle continuous collector currents up to 2A, making it suitable for driving larger loads.
• Low Saturation Voltage: The low V<sub>CE(sat) helps in reducing power dissipation and improving efficiency, which is crucial for power-sensitive designs.
• High Breakdown Voltage: The ZTX853 has a collector-emitter voltage (V<sub>CEO) of 100V, which allows it to withstand high voltage conditions without breakdown.

Applications

• Audio Amplifiers
• Switching Regulators
• Power Management Circuits
• Motor Control Systems

Quality and Reliability

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The ZTX853 is built using state-of-the-art manufacturing processes, ensuring consistent performance and durability. Its robust construction is designed to withstand harsh conditions and provide a long operational lifespan.

Environmental Compliance

The ZTX853 transistor is compliant with RoHS and REACH environmental directives, signifying Diodes Incorporated's dedication to reducing the environmental impact of its products. By choosing the ZTX853, customers can be confident they are selecting a product that not only delivers in performance but also upholds environmental standards.

With its combination of power, speed, and reliability, the ZTX853 from Diodes Incorporated is an excellent choice for designers looking to optimize their high-performance applications.
