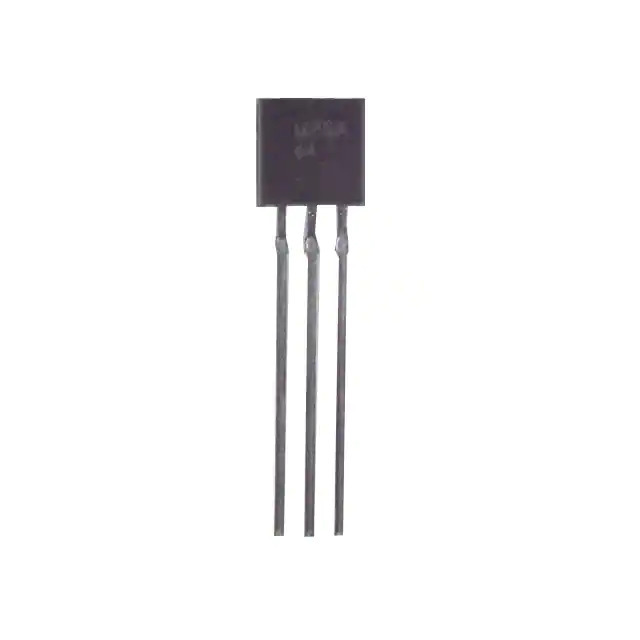

Same model may have multiple batches, images only for reference.
BC547CBK DIOTEC Electronics Corporation
Same model may have multiple batches, images only for reference.

BC547CBK

Part No BC547CBK
Manufacturer DIOTEC Electronics Corporation
Catalog Transistors (BJT) - Single
Description TRANS NPN 45V 0.1A TO92
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Diotec Semiconductor
Series -
Package Strip
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA
DC Current Gain (hFE) (Min) @ Ic, Vce 420 @ 2mA, 5V
Power - Max 500 mW
Frequency - Transition 300MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92
Win Source Part Number 1377070-BC547CBK
Ultra Librarian 3D Model Ultra Librarian BC547CBK CAD Model

Description

The BC547CBK is an active NPN bipolar transistor from Diotec Semiconductor.

  • Maximum Collector Current: 100 mA
  • Maximum Collector-Emitter Breakdown Voltage: 45V
  • Mounting Type: Through-Hole
  • Package: TO-226-3, TO-92-3 (TO-226AA)
  • DC Current Gain: 420 @ 2mA, 5V
  • Frequency Transition: 300MHz
  • Application: Discrete Semiconductor
  • Operating Temperature: -55°C to 150°C
