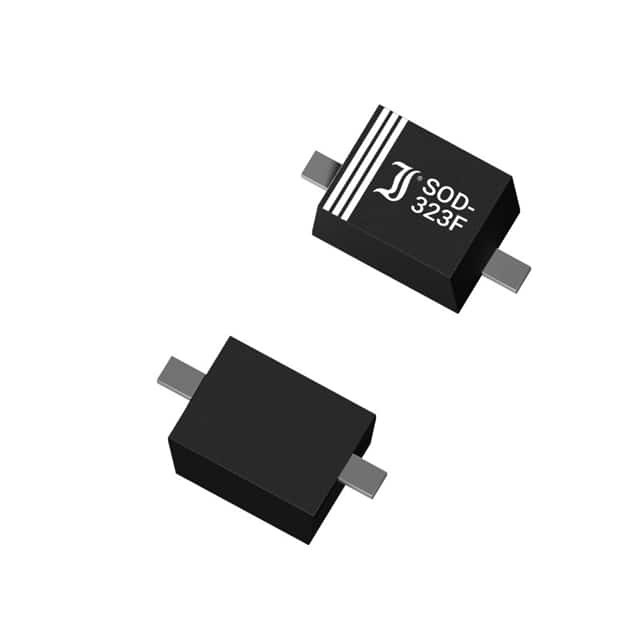

Same model may have multiple batches, images only for reference.
ESD3Z12
Same model may have multiple batches, images only for reference.

ESD3Z12

Part No ESD3Z12
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS, 13.30V-19.00V, 350W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 25V
Current - Peak Pulse (10/1000µs) 15A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 150pF @ 1MHz
Temperature Range - Operating -50°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Standard Package 750 pcs
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Win Source Part Number 871152-ESD3Z12
Ultra Librarian 3D Model Ultra Librarian ESD3Z12 CAD Model

Description

The DIOTEC Electronics Corporation 871152-ESD3Z12 is a Zener type TVS diode suitable for general purpose applications.

  • Package: surface mount package, specifically the SC-90, SOD-323F package
  • Voltage Reverse Standoff: 12V
  • Breakdown Voltage (Minimum): 13.3V
  • Peak Pulse Power: 350W
  • Channel: unidirectional channel
  • Clamping Voltage @ Rated Peak Pulse Current: 25V
  • Capacitance: 150pF @ 1MHz
  • Operating Temperature Range: -50°C to 125°C
  • Manufacturer: DIOTEC Electronics Corporation
  • Product Line: active product line
