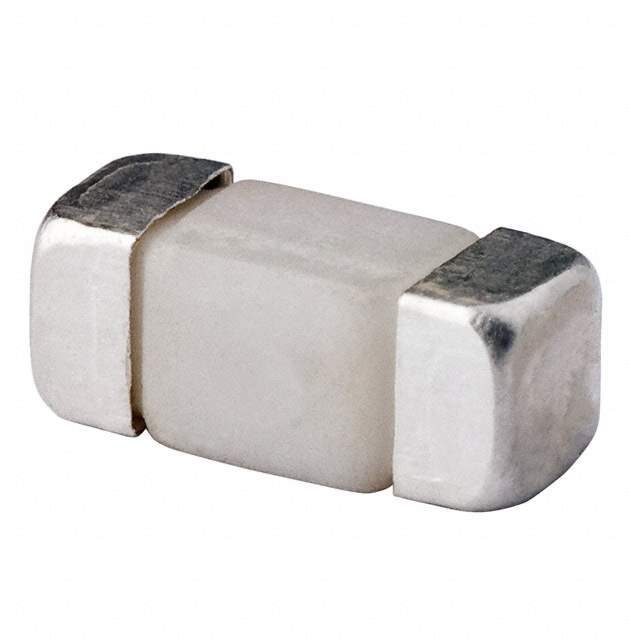

CB61F12A-TR2 Real Image
Same model may have multiple batches, images only for reference.

CB61F12A-TR2

Part No CB61F12A-TR2
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 12A 125VAC/VDC SMD / Fuse Chip Fast Acting 12A 125V SMD Solder Pad 6.1 X 2.57mm T/R PSE/cULus
Datasheet
CB61F12A-TR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series CB61F
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 12A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast
Package 2-SMD, Square End Block
Mounting SMD
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Melting I2t 40
Approvals cULus, PSE
Dimension 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
Resistance 0.005 Ohm
Win Source Part Number 771231-CB61F12A-TR2
Popularity Medium
Supply and Demand Status Balance
Family Name CB61F
Introduction Date December 12, 2011
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CB61F12A-TR2 CAD Model

Description

The Eaton CB61F12A-TR2 is a board mount (cartridge style excluded) fuse.

  • Current Rating: 12A
  • Voltage Rating: 125V AC/DC
  • Response Time: Fast
  • Breaking Capacity: 50A AC, 300A DC
  • Package: 2-SMD, Square End Block
  • Dimension: 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
  • Approvals: cULus, PSE
