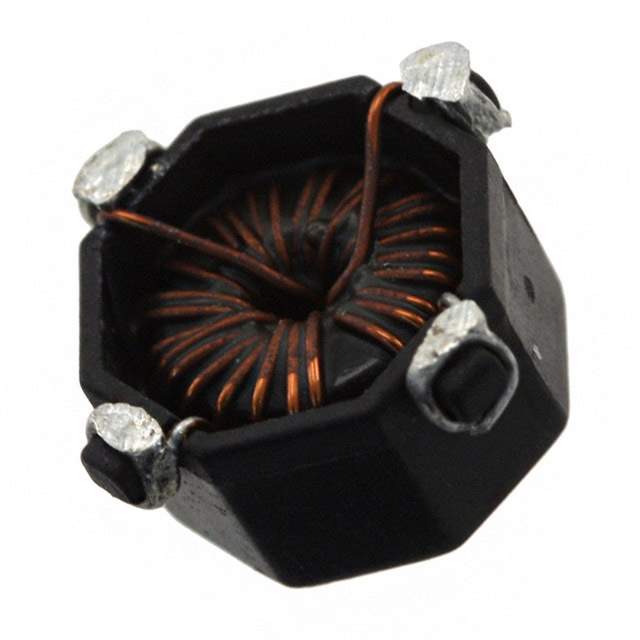

CTX10-2-R Real Image
Same model may have multiple batches, images only for reference.

CTX10-2-R

Part No CTX10-2-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 10.58UH SMD / Unshielded 2 Coil Inductor Array 42.3 µH Inductance - Connected in Series 10.58 µH Inductance - Connected in Parallel 31mOhm Max DC Resistance (DCR) - Parallel 2.5 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series OCTA-PAC®
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 10.58 µH
Inductance - Connected In Series 42.3 µH
Tolerance ±20%
Current Rating - Parallel 2.5 A
Current Rating - Series 1.25 A
DC Resistance (DCR) - Parallel 31mOhm Max
DC Resistance (DCR) - Series 125mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.235" (5.97mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX102R,513-1004-2,513-1004-1,513-1004-6,CTX10-2,Q3771029
Standard Package 800
Win Source Part Number 1009776-CTX10-2-R
Ultra Librarian 3D Model Ultra Librarian CTX10-2-R CAD Model

Description

The OCTA-PAC series signal transformers are designed for use in inductors, coils, and chokes. These transformers are manufactured by Eaton - Electronics Division and come in a standard package of 800.

  • Package/Case: Tape and Reel
  • Shielding: Unshielded
  • Tolerance: ±20%
  • Height: 0.235" (5.97mm)
  • Number of Coils: 2
  • Inductance (Series): 42.3 µH
  • Inductance (Parallel): 10.58 µH
  • Current Rating (Parallel): 2.5 A
  • Current Rating (Series): 1.25 A
  • DC Resistance (DCR) Parallel: 31mOhm Max
  • DC Resistance (DCR) Series: 125mOhm Max
  • Package/Case: Nonstandard
  • Operating Temperature: -40°C to 85°C
