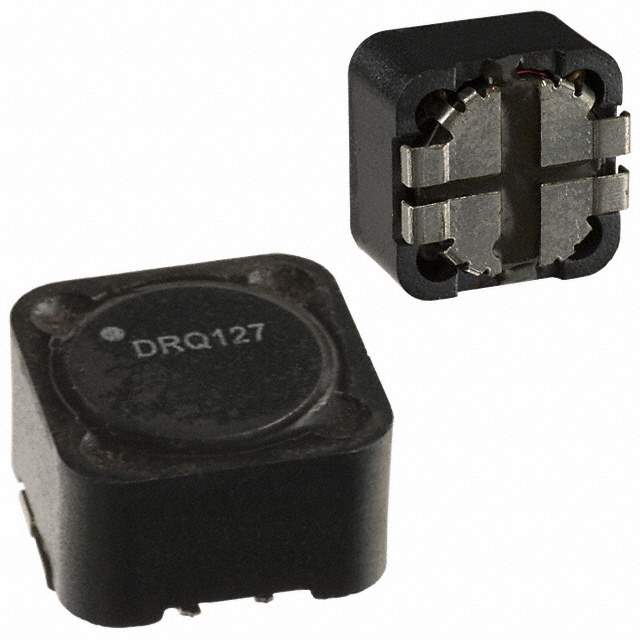

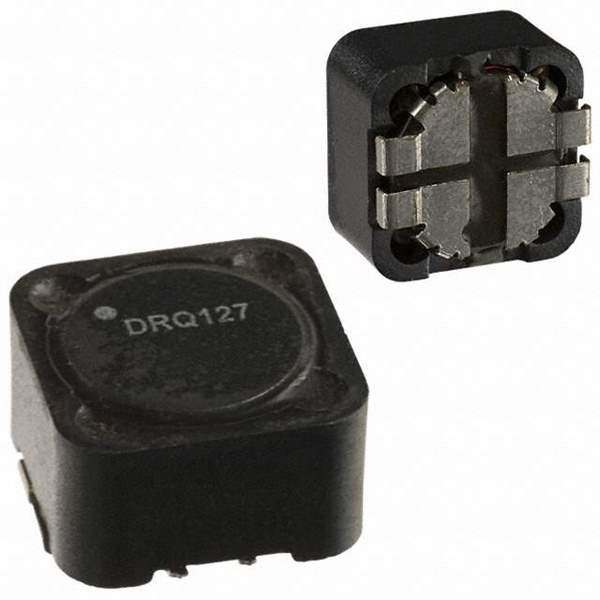

DRQ127-150-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-150-R

Part No DRQ127-150-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 14.09UH SMD  /  Shielded 2 Coil Inductor Array 56.36 µH Inductance - Connected in Series 14.09 µH Inductance - Connected in Parallel 24.7mOhm DC Resistance (DCR) - Parallel 5.03 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 14.09 µH
Inductance - Connected In Series 56.36 µH
Tolerance ±20%
Current Rating - Parallel 5.03 A
Current Rating - Series 2.51 A
Current Saturation - Parallel 9.66 A
Current Saturation - Series 4.83 A
DC Resistance (DCR) - Parallel 24.7mOhm
DC Resistance (DCR) - Series 99mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 513-1144-1,513-1144-2,DRQ127-150-ND,Q5431211B,513-1144-6,DRQ127150R,DRQ127-150
Standard Package 350
Win Source Part Number 1182060-DRQ127-150-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-150-R CAD Model

Description

The DRQ series signal transformers are designed for use in inductors, coils, and chokes.

  • Package/Case: Tape and Reel
  • Shielded: Yes
  • Tolerance: ±20%
  • Height: 0.315" (8.00mm)
  • Number of Coils: 2
  • Inductance (Series): 56.36 µH
  • Inductance (Parallel): 14.09 µH
  • Current Rating (Parallel): 5.03 A
  • Current Rating (Series): 2.51 A
  • DC Resistance (DCR) (Parallel): 24.7mOhm
  • DC Resistance (DCR) (Series): 99mOhm
  • Package/Case: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Eaton - Electronics Division
  • Standard Package: 350
