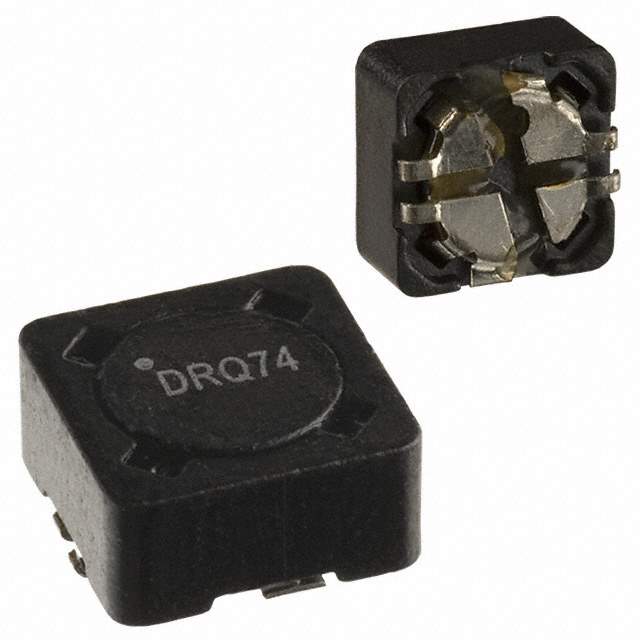

DRQ74-330-R Real Image
Same model may have multiple batches, images only for reference.

DRQ74-330-R

Part No DRQ74-330-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 33.01UH SMD  /  Shielded 2 Coil Inductor Array 132 µH Inductance - Connected in Series 33.01 µH Inductance - Connected in Parallel 143mOhm DC Resistance (DCR) - Parallel 1.41 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 33.01 µH
Inductance - Connected In Series 132 µH
Tolerance ±20%
Current Rating - Parallel 1.41 A
Current Rating - Series 702 mA
Current Saturation - Parallel 1.73 A
Current Saturation - Series 870 mA
DC Resistance (DCR) - Parallel 143mOhm
DC Resistance (DCR) - Series 574mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.175" (4.45mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ74-330,DRQ74-330-ND,DRQ74-330-R-ND,513-1269-2,DRQ74330R,513-1269-1,513-1269-6,DRQ74-330R
Standard Package 1,100
Win Source Part Number 1029112-DRQ74-330-R
Ultra Librarian 3D Model Ultra Librarian DRQ74-330-R CAD Model

Description

The DRQ74-330-R is an array, signal transformer inductor from Eaton.

  • Package: Shielded, tape and reel
  • Tolerance: ±20%
  • Height: 0.175 inches (4.45 mm)
  • Coils: Two coils
  • Series Inductance: 132 µH
  • Parallel Inductance: 33.01 µH
  • Parallel Current Rating: 1.41 A
  • Series Current Rating: 702 mA
  • Parallel DC Resistance: 143 mOhm
  • Series DC Resistance: 574 mOhm
  • Supplier Device Package: Nonstandard
  • Application: Ideal for use in inductors, coils, and chokes.
