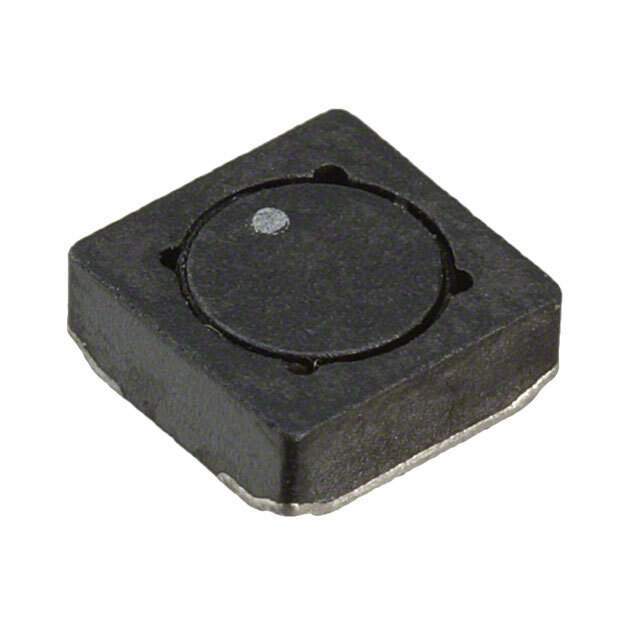

SD20-1R5-R

Name: SD20-1R5-R
Brand: Eaton Bussmann
SKU: 1091995
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SD20-1R5-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 2.88A 31.2 MOHM / 1.5 µH Shielded Drum Core, Wirewound Inductor 2.88 A 31.2mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	SD
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1.5 µH
Tolerance	±20%
Current Rating (Amps)	2.88 A
Current - Saturation (Isat)	2.15A
Shielding	Shielded
DC Resistance (DCR)	31.2mOhm
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.079" (2.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SD20-1R5,SD20-1R5-ND
Standard Package	2,900
Win Source Part Number	1091995-SD20-1R5-R
Ultra Librarian 3D Model	Ultra Librarian SD20-1R5-R CAD Model

Alternative Products

Description

The SD drum core, wirewound fixed inductor is designed to store energy in a magnetic field.

Package: Shielded
Inductance: 1.5 µH
Nonstandard Package Size: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height: 0.079" (2.00mm)
DC Resistance (DCR): 31.2mOhm
Current Rating: 2.88A
Mounting: SMD (SMT)
Temperature Range: -40°C to 85°C
Supplier: Eaton - Electronics Division
