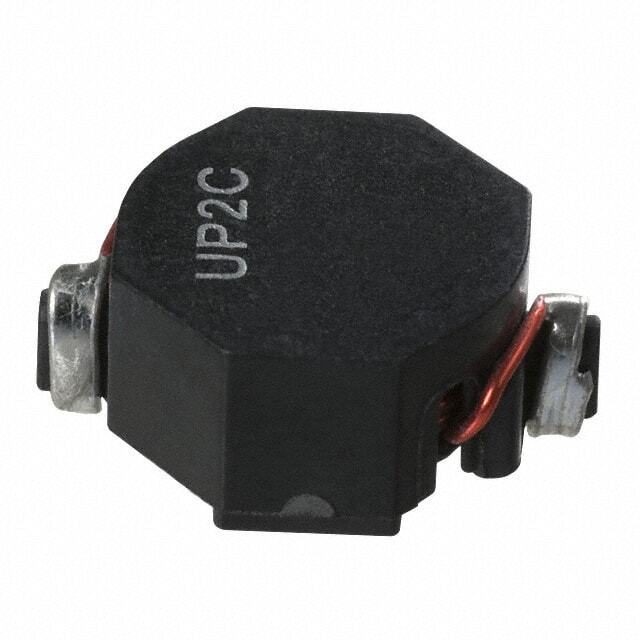

Same model may have multiple batches, images only for reference.

UP2C-101-R

Name: UP2C-101-R
Brand: Eaton Bussmann
SKU: 1002977
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UP2C-101-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.26A 233.1 MOHM / 100 µH Unshielded Drum Core, Wirewound Inductor 1.26 A 233.1mOhm Nonstandard
Datasheet	UP2C-101-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	UNI-PAC™ 2C
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.26 A
Current - Saturation (Isat)	1.24A
Shielding	Unshielded
DC Resistance (DCR)	233.1mOhm
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.508" L x 0.370" W (12.90mm x 9.40mm)
Height - Seated (Max)	0.205" (5.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	513-1763-2,UP2C-101-ND,513-1763-1,UP2C101R,513-1763-6,UP2C-101,UP2C-101-R-ND
Standard Package	900
Win Source Part Number	1002977-UP2C-101-R
Ultra Librarian 3D Model	Ultra Librarian UP2C-101-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division UNI-PAC™ 2C UP2C-101-R is a drum core, wirewound type of inductor with a current rating of 1.26 A and an inductance of 100 µH.

Manufacturer: Eaton - Electronics Division
Current Rating: 1.26 A
Inductance: 100 µH
Unshielded: Yes
DC Resistance: 233.1mOhm
Mounting: SMD
Tolerance: ±20%
Material: Ferrite
Dimension Length: 0.508 inches
Dimension Width: 0.370 inches
Package: Tape and reel
Height: 0.205 inches
ECCN: EAR99
