Same model may have multiple batches, images only for reference.

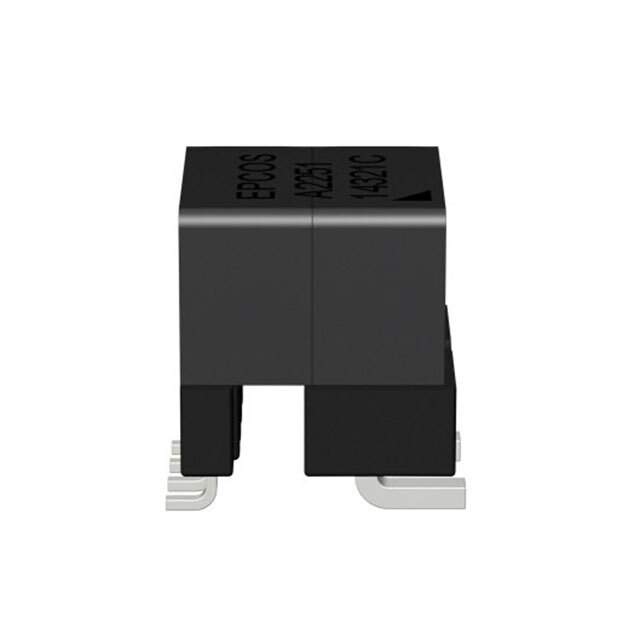

B78417A2285A003 Real Image
Same model may have multiple batches, images only for reference.

B78417A2285A003

Part No B78417A2285A003
Manufacturer EPCOS (TDK)
Catalog OEM Parts (A - B)
Description Current Sense Transformer 1: 50 2400VAC 1.9Ohm Prim. 2.1Ohm Sec. 20A Surface Mount Tape
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 20 A
DC Resistance (DCR) 2.1 Ω
Frequency 250 kHz
Height - Seated (Max) 10.9982 mm
Inductance 1.7 mH
Length 12.192 mm
Mount Surface Mount
RoHS Compliant
Termination Gull Wing
Width 10.5918 mm
Win Source Part Number 962796-B78417A2285A003
Categories OEM Parts(A-B)
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B78417A2285A003 CAD Model

Description

The EPCOS (TDK) 962796-B78417A2285A003 is a surface mount inductor with a current rating of 20 A and an inductance of 1.7 mH.

  • Mounting: Surface Mount
  • Current Rating: 20 A
  • Inductance: 1.7 mH
  • Termination: Gull Wing
  • DC Resistance (DCR): 2.1 Ω
  • Height - Seated (Max): 10.9982 mm
  • Length: 12.192 mm
  • Width: 10.5918 mm
  • Frequency: 250 kHz
  • RoHS Compliant: Yes
  • Category: OEM Parts(A-B)
  • Supply and Demand Status: Shortage
