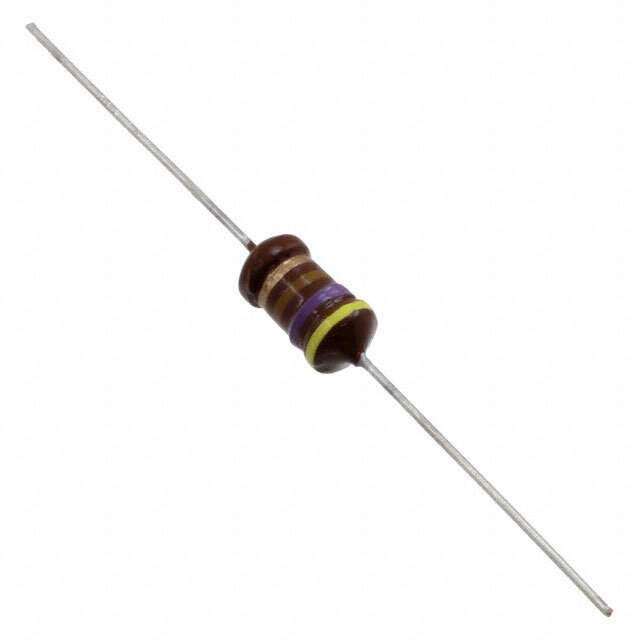

B82145A1474J000 Real Image
Same model may have multiple batches, images only for reference.

B82145A1474J000

Part No B82145A1474J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 470UH 510MA 1.9 OHM TH / 470 µH Unshielded Drum Core, Wirewound Inductor 510 mA 1.9Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series HLBC
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±5%
Current Rating (Amps) 510 mA
Shielding Unshielded
DC Resistance (DCR) 1.9Ohm Max
Q @ Freq 30 @ 796kHz
Frequency - Self Resonant 1.8MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Axial
Dimension 0.256" Dia x 0.472" L (6.50mm x 12.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 495-5633-1,495-5633-2,495-5633-6-ND,495-5633-6INACTIVE,495-5633-6,B82145A1474J-ND,B82145A1474J
Standard Package 1,250
Win Source Part Number 1154200-B82145A1474J000
Ultra Librarian 3D Model Ultra Librarian B82145A1474J000 CAD Model

Description

The EPCOS - TDK Electronics HLBC series fixed inductor is a drum core, wirewound type with a ferrite core material.

  • Series: HLBC
  • Core Type: Drum Core, Wirewound
  • Core Material: Ferrite
  • Shielding: Unshielded
  • Inductance: 470 µH
  • Tolerance: ±5%
  • Q @ Freq: 30 @ 796kHz
  • Frequency - Self-Resonant: 1.8MHz
  • DC Resistance (DCR): 1.9Ohm Max
  • Mounting Type: Through-Hole
  • Package/Case: Axial
  • Standard Package: 1,250
