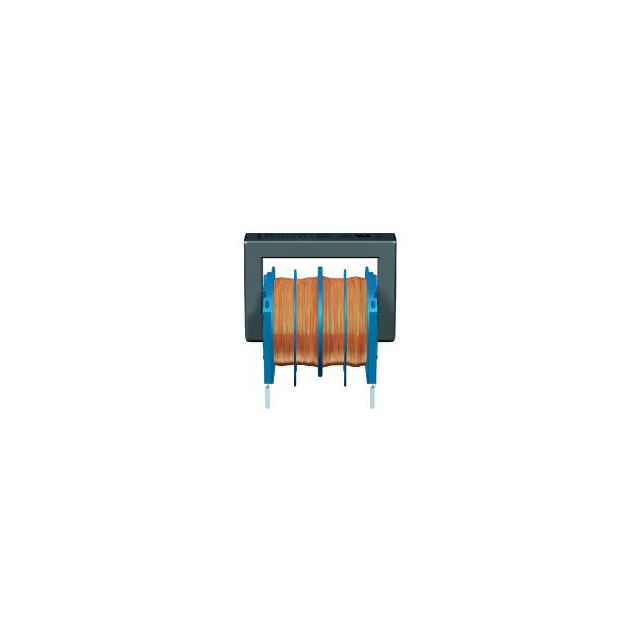

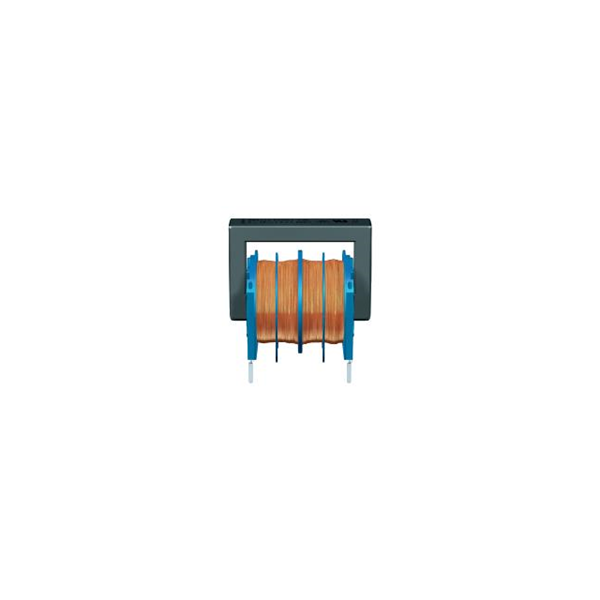

B82731M2801A030 Real Image
Same model may have multiple batches, images only for reference.

B82731M2801A030

Part No B82731M2801A030
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 22MH 800MA 2LN TH / 22 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 800mA DCR 800mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1337492-B82731M2801A030
HTSUS 8548.00.0000
ECCN EAR99
REACH Status REACH Affected
MSL Level Not Applicable
Standard Package 800
Package / Case Vertical, 4 PC Pin
Height (Max) 0.807" (20.50mm)
Size / Dimension 0.827" L x 0.591" W (21.00mm x 15.00mm)
Mounting Type Through Hole
Approval Agency ENEC, UR, VDE
Temperature Range - Operating -40°C ~ 125°C
Voltage Rating - AC 250V
DC Resistance (DCR) (Max) 800mOhm (Typ)
Current Rating (Max) 800mA
Inductance @ Frequency 22 mH @ 10 kHz
Number of Lines 2
Filter Type Power Line
Package Tray
Series B82731
Mfr EPCOS - TDK Electronics
Category Filters - Common Mode Chokes
Ultra Librarian 3D Model Ultra Librarian B82731M2801A030 CAD Model

Description

The EPCOS (TDK) B82731 series is a vertical, 4 PC pin package designed for use in power line filters.

  • Manufacturer: EPCOS (TDK)
  • Series: B82731
  • Application: Power Line Filters
  • Package Type: Vertical, 4 PC Pin
  • Voltage Rating - AC: 250V
  • Current Rating (Max): 800mA
  • Inductance @ Frequency: 22 mH @ 10 kHz
  • Height: 0.807 inches
  • Number of Lines: 2
  • Temperature Range of Operation: -40°C to 125°C
  • MSL Level: Not Applicable
  • REACH Status: REACH affected
  • HTSUS: 8548.00.0000
  • Approvals: ENEC, UR, VDE
