Same model may have multiple batches, images only for reference.

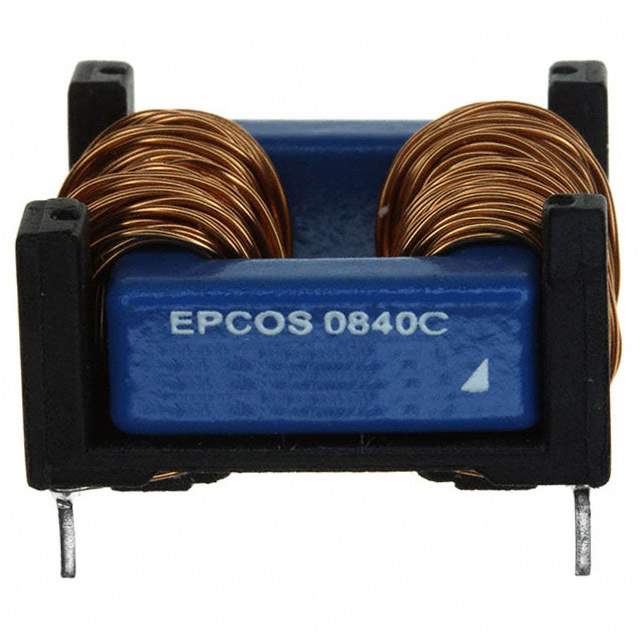

B82732F2901B001 Real Image
Same model may have multiple batches, images only for reference.

B82732F2901B001

Part No B82732F2901B001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 27MH 900MA 2LN TH / 27 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 900mA DCR 770mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer EPCOS - TDK Electronics
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 27 mH @ 10 kHz
Current Rating (Max) 900mA
DC Resistance (DCR) (Max) 770mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Through Hole
Size / Dimension 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) 0.531" (13.50mm)
Case / Package Horizontal, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number B82732F2901B1,495-2775,-495-2775,-B82732F2901B1,B82732F2901B 1,-495-2775-ND,B82732F2901B 1
Standard Package 770
Win Source Part Number 1328221-B82732F2901B001
Ultra Librarian 3D Model Ultra Librarian B82732F2901B001 CAD Model

Description

The EPCOS - TDK Electronics 1328221-B82732F2901B001 is a common mode choke filter that is used in various applications.

  • Packaging: Tray
  • Voltage Rating: 250V AC
  • Current Rating: 900mA
  • Standard Package: 770
  • Mounting Style: Through-hole
  • Filter Type: Power line
  • Temperature Range: -40°C to 125°C
  • Package: Horizontal, 4 PC pin
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • Compliance: RoHS3
