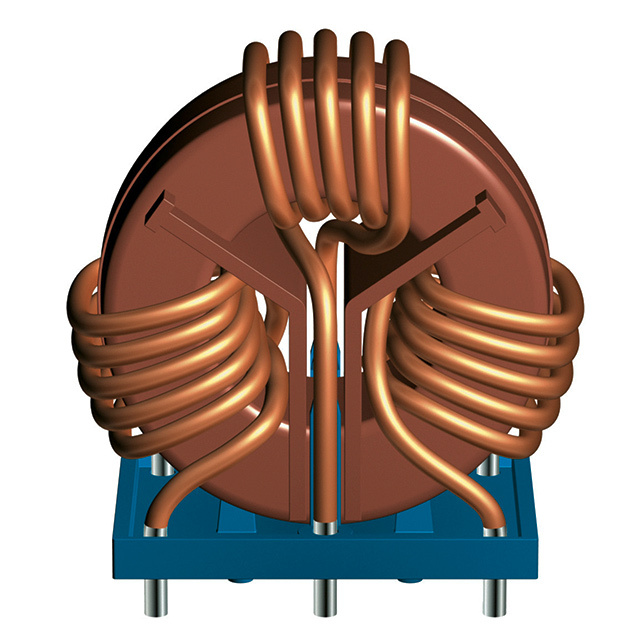

B82745S6123N002 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82745S6123N002

Part No B82745S6123N002
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 350 µH @ 100 kHz 3 Line Common Mode Choke Through Hole 12A DCR 3.7mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82745
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 350 µH @ 100 kHz
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 3.7mOhm (Typ)
Voltage Rating - AC 440/250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 2.953" Dia (75.00mm)
Height (Max) 1.850" (47.00mm)
Package / Case Vertical, 6 Flat Lead
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482302-B82745S6123N002
Ultra Librarian 3D Model Ultra Librarian B82745S6123N002 CAD Model
