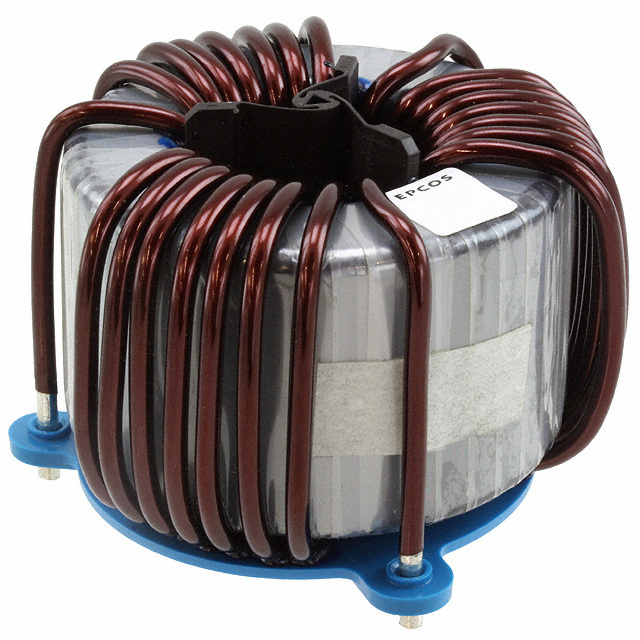

B82747S4183N021 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82747S4183N021

Part No B82747S4183N021
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 1.8 mH @ 10 kHz 3 Line Common Mode Choke Through Hole 18A DCR 4.7mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82747
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 1.8 mH @ 10 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 4.7mOhm (Typ)
Voltage Rating - AC 440/250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 2.677" Dia (68.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Radial - 6 Leads
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482313-B82747S4183N021
Ultra Librarian 3D Model Ultra Librarian B82747S4183N021 CAD Model
