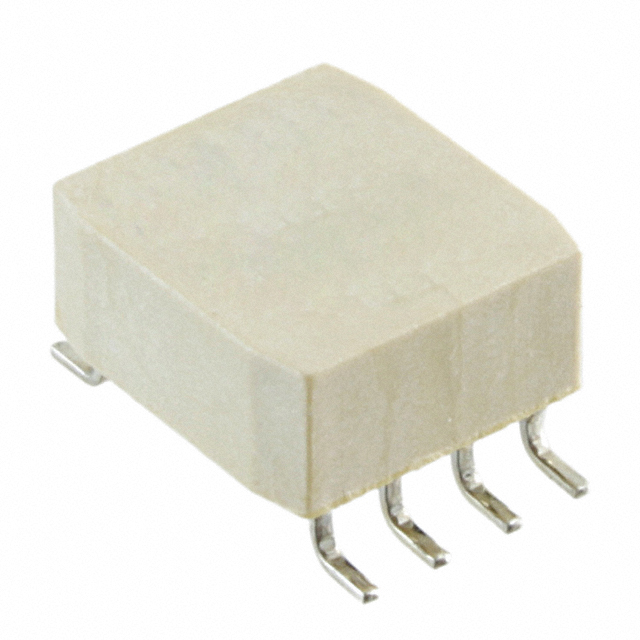

Same model may have multiple batches, images only for reference.
B82792C2474N315 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82792C2474N315

Part No B82792C2474N315
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 470 µH @ 100 kHz 4 Line Common Mode Choke Surface Mount 600mA DCR 220mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82792
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 4
Inductance @ Frequency 470 µH @ 100 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 220mOhm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.453" L x 0.413" W (11.50mm x 10.50mm)
Height (Max) 0.287" (7.30mm)
Package / Case Horizontal, 8 Gull Wing
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482373-B82792C2474N315
Ultra Librarian 3D Model Ultra Librarian B82792C2474N315 CAD Model
