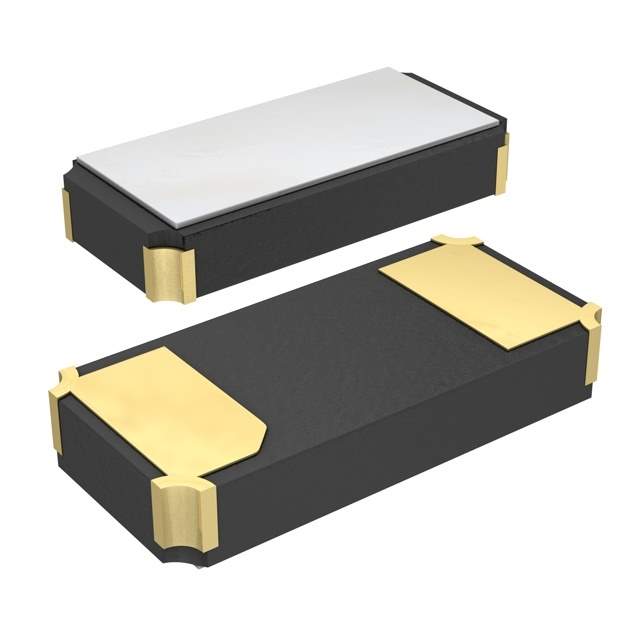

FC-135 32.7680KA-A0 Real Image
Same model may have multiple batches, images only for reference.

FC-135 32.7680KA-A0

Part No FC-135 32.7680KA-A0
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series FC-135
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Other Names SER4077TR,SER4077DKR,Q13FC1350000414,Q8546330,FC-135 32.7680KA-A0-ND,FC-13532.7680KA-A0,SER4077CT,822488
Standard Package 1,000
Win Source Part Number 1058620-FC-135 32.7680KA-A0
Ultra Librarian 3D Model Ultra Librarian FC-135 32.7680KA-A0 CAD Model

Description

The FC-135 32.7680KA-A0 kHz Crystal (Tuning Fork) is a high-quality electronic component manufactured by Epson.

  • Frequency: 32.768 kHz
  • Load Capacitance: 12.5pF
  • ESR (Equivalent Series Resistance): 70 kOhms
  • Frequency Tolerance: ±20ppm
  • Package: 2-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Standard Package: 1,000
