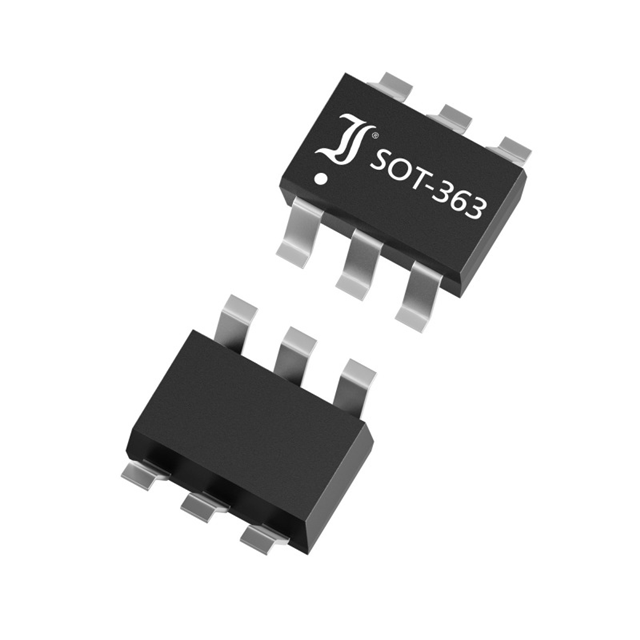

BC847S Real Image
Same model may have multiple batches, images only for reference.

BC847S

Part No BC847S
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Arrays
Description TRANS 2NPN 45V 0.2A SC70-6
Datasheet
BC847S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity 2 NPN (Dual)
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 45V
Max Vce (sat) 650mV @ 5mA, 100mA
Collector Cut-off Current(Max) 15nA (ICBO)
Typical Gain (hFE) (Min) 110 @ 2mA, 5V
Maximum Power Dissipation 300mW
Frequency - Transition 200MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 095717-BC847S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BC847S CAD Model

Description

BC847S - Reliable Single NPN Transistor

The BC847S transistor is a reliable single NPN device, widely used in numerous electronics projects for its exemplary performance.

  • Applications:
    • Amplification Circuits
    • Switch Mode Power Supplies
    • General-Purpose Switching
  • Features and Benefits:
    • Single NPN transistor
    • High current gain
    • Low output capacitance for clearer signal amplification
  • Additional Details:
    • Designed with a space-efficient surface-mount format
    • Compliant with RoHS for environmentally friendly designs
