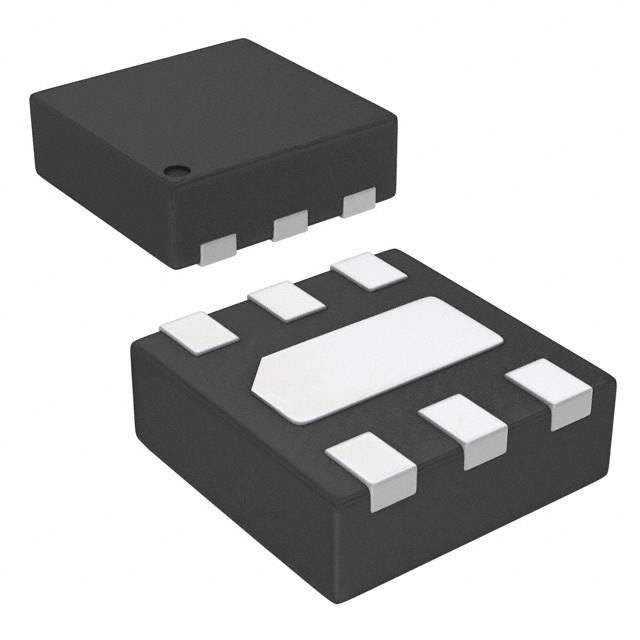

FAN2558MPX Real Image
Same model may have multiple batches, images only for reference.

FAN2558MPX

Part No FAN2558MPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description 180mA Low Voltage CMOS LDO
Datasheet
FAN2558MPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 5.5V
Output Voltage 1V
Output Voltage MAX 5.5V
Voltage Dropout (Maximum) 0.4V @ 180mA
Output Current 180mA
Operating Supply Current 150μA
PSRR 50dB (100kHz)
Control Features Enable, Power Good
Protection Features Over Current, Over Temperature
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 6-VDFN Exposed Pad
Manufacturer Package 6-MLP (2x2)
RoHS State Request Verification
Win Source Part Number 1173285-FAN2558MPX
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FAN2558
Introduction Date April 14, 2003
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian FAN2558MPX CAD Model

Description

The FAN2558MPX is an adjustable output type voltage regulator with a positive output configuration from Fairchild/ON Semiconductor.

  • Output Type: Adjustable
  • Output Configuration: Positive
  • Output Voltage (Max): 5.5V
  • Voltage Input (Max): 5.5V
  • Operating Supply Current: 150μA
  • Package: 6-VDFN Exposed Pad
  • Mounting Type: SMD
  • Protection Features: Over Current, Over Temperature
  • Family Name: FAN2558
  • Manufacturer Homepage: www.fairchildsemi.com
  • Estimated EOL Date: 2023
  • Supply and Demand Status: Limited
