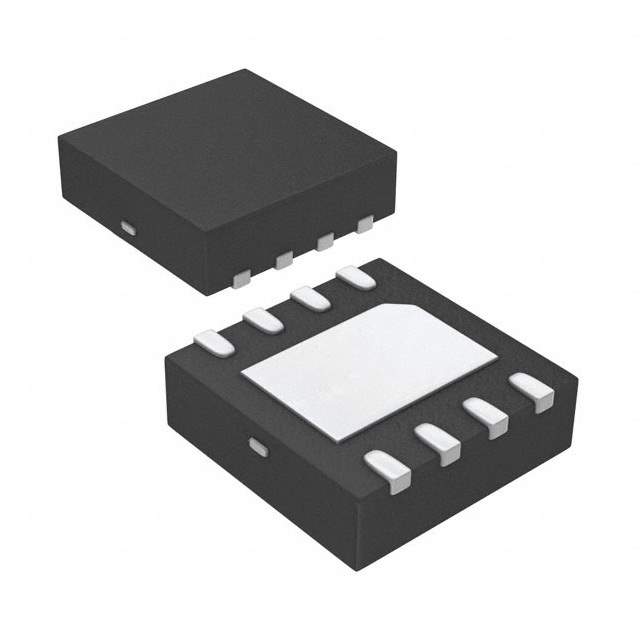

FAN3122TMPX Real Image FAN3122TMPX real image17972
Same model may have multiple batches, images only for reference.
FAN3122TMPX Real Image FAN3122TMPX real image17972
FAN3122TMPX Real Image FAN3122TMPX real image17972
Same model may have multiple batches, images only for reference.

FAN3122TMPX

Part No FAN3122TMPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Gate Drivers
Description Single 9A High-Speed, Low-Side Gate Driver
Datasheet
FAN3122TMPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel MOSFET
Operating Supply Voltage 4.5 V ~ 18 V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 10.6A, 11.4A
Rise / Fall Time (Typ) 23ns, 19ns
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-WDFN Exposed Pad
Manufacturer Package 8-MLP (3x3)
Win Source Part Number 1173297-FAN3122TMPX
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FAN3122
Introduction Date September 24, 2008
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian FAN3122TMPX CAD Model

Description

The FAN3122TMPX is an integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Configuration: single-channel, low-side driven
  • Gate type: N-channel MOSFET
  • Temperature range: -55°C to 150°C
  • Package: 8-WDFN Exposed Pad
  • Mounting: SMD
  • Operating supply voltage: 4.5 V to 18 V
  • Halogen-free compliant: yes
  • Manufacturer website: www.fairchildsemi.com
