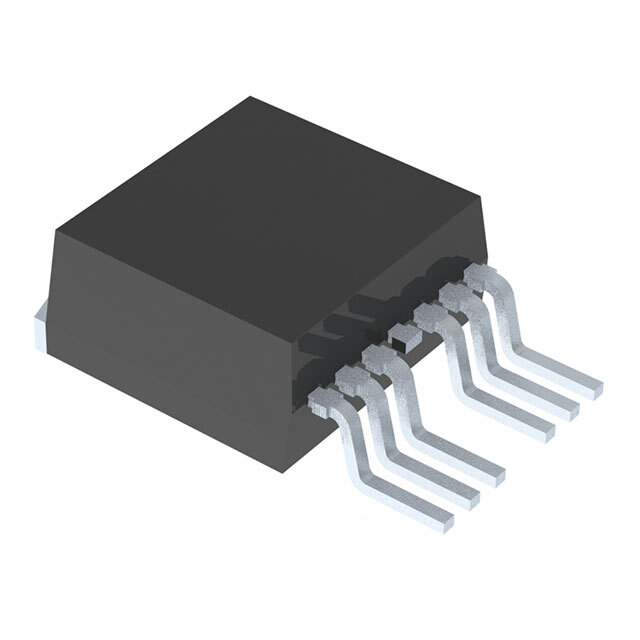

FDBS09H04A_F085A Real Image
Same model may have multiple batches, images only for reference.

FDBS09H04A_F085A

Part No FDBS09H04A_F085A
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description MOSFET N-CH SMART SWITCH TO263-7
Datasheet
FDBS09H04A_F085A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 5.5 V to 38 V
Supply Voltage - Operating Not Required
Current - Output (Max) 12A
Rds On (Typ) 5.5 mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-263-7
Win Source Part Number 001115-FDBS09H04A_F085A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FDBS09H04A_F085A CAD Model

Description

FDBS09H04A_F085A Schottky Diode

Engineered for low voltage and high current applications, the FDBS09H04A_F085A Schottky diode offers superior efficiency and fast switching capabilities.

Features and Benefits:

  • High efficiency through low forward voltage drop
  • Fast recovery time for high-speed circuits
  • Compact and moisture-resistant packaging
  • High-current handling capacity

Applications:

  • Power factor correction circuits
  • High-frequency rectification
  • Secondary rectification in SMPS
  • Communication equipment

This diode is specially designed for efficiency-sensitive and high-frequency applications.
