Same model may have multiple batches, images only for reference.

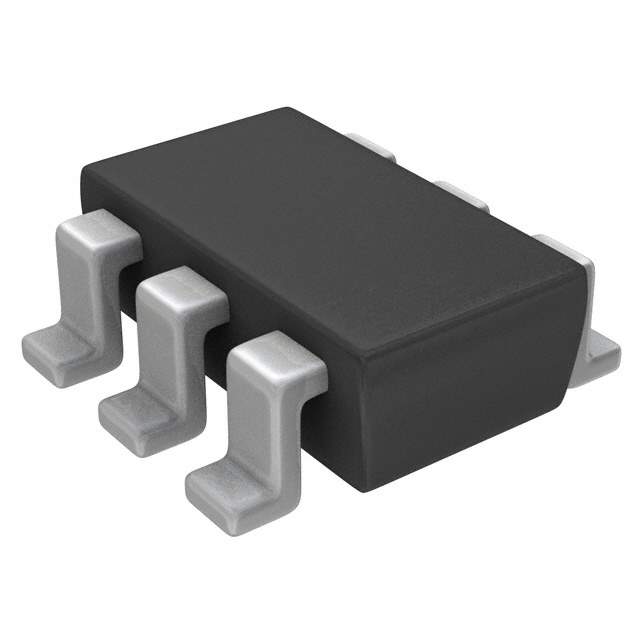

FDC6036P_F077 Real Image
Same model may have multiple batches, images only for reference.

FDC6036P_F077

Part No FDC6036P_F077
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 5A 6SSOT / Trans MOSFET P-CH 20V 5A 6-Pin SSOT FLMP T/R
Datasheet
FDC6036P_F077 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench
Packaging Reel package
Part Status Obsolete(EOL)
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain Source Voltage 20V
Current - Continuous Drain (Id) @ 25°C 5A
Rds On (Maximum) @ Id, Vgs 44 mOhm @ 5A, 4.5V
Vgs(th) (Maximum) @ Id 1.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 14nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 992pF @ 10V
Power - Max 900mW
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 6-SSOT Flat-lead, SuperSOT-6 FLMP
Manufacturer Package SuperSOT-6
Win Source Part Number 774470-FDC6036P_F077
Popularity Medium
Supply and Demand Status Limited
Family Name FDC6036P
Introduction Date February 01, 2003
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FDC6036P_F077 CAD Model

Description

The FDC6036P_F077 is a PowerTrench series device designed by Fairchild/ON Semiconductor.

  • FET Type: 2 P-Channel (Dual)
  • Gate Feature: Logic Level
  • Package: 6-SSOT Flat-lead, SuperSOT-6 FLMP
  • Mounting: SMD
  • Current Continuous Drain (Id) @ 25°C: 5A
  • Power Max: 900mW
  • Application: Discrete Semiconductor Products
  • Temperature Range: -55°C ~ 150°C (TJ)
