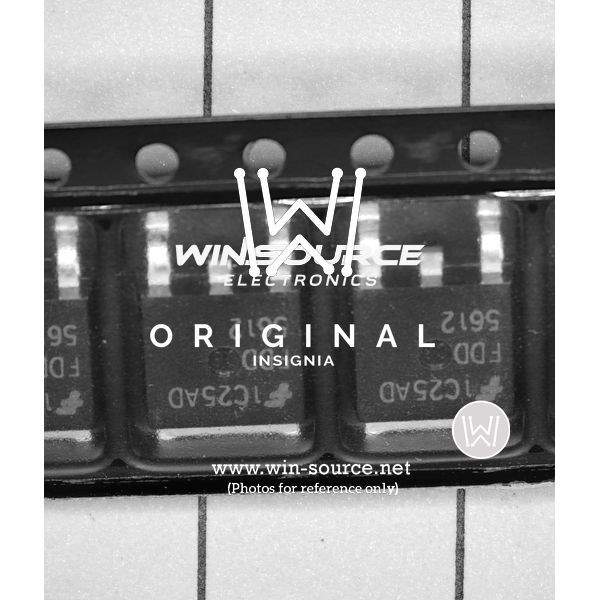

FDD5612

Part No FDD5612
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 5.4A DPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 5.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 11nC @ 10V
Max Input Capacitance 660pF @ 30V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.8W (Ta), 42W (Tc)
Maximum Rds On at Id,Vgs 55 mOhm @ 5.4A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package TO-252-3
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 066924-FDD5612
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Industrial
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FDD5612 CAD Model

Description

FDD5612 from Fairchild/ON Semiconductor is listed in the Transistors - FETs, MOSFETs - RF category and is typically evaluated by engineers for RF-related switching, amplification, and signal control designs where device selection depends on frequency behavior, package constraints, and long-term sourcing stability. This part may be considered for telecom infrastructure, wireless subsystems, test equipment, and other high-frequency applications, but engineers should confirm fit against the latest official datasheet before designing it into new products. From a procurement perspective, FDD5612 may also be relevant for maintenance, repair, and replacement sourcing when legacy Fairchild or ON Semiconductor devices are already qualified in an existing BOM. Lifecycle status information is currently not available, so buyers should assess supply continuity carefully and verify whether the device remains in active production. RoHS compliance information is also not available from the provided input, and compliance should be confirmed directly through current manufacturer documentation or authorized channel support.
