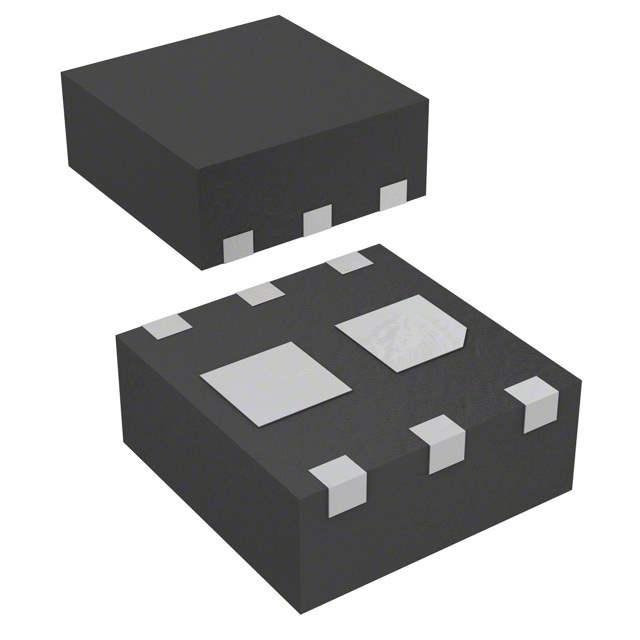

FDMA1032CZ Real Image
Same model may have multiple batches, images only for reference.

FDMA1032CZ

Part No FDMA1032CZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 20V MICROFET 2X2
Datasheet
FDMA1032CZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type N and P-Channel
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 3.7A, 3.1A
Maximum Rds On at Id,Vgs 68 mOhm @ 3.7A, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 6nC @ 4.5V
Max Input Capacitance 340pF @ 10V
Maximum Power Dissipation 700mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MicroFET (2x2)
Win Source Part Number 016005-FDMA1032CZ
Family Name FDMA1032CZ
Introduction Date May 22, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMA1032CZ CAD Model

Description

The Fairchild/ON Semiconductor FDMA1032CZ is a N and P-channel FET type with a logic level gate feature.

  • Application: Industrial and Power Management
  • Power Dissipation (Max): 700mW
  • Drain-Source Breakdown Voltage: 20V
  • Rds On (Max) @ Id, Vgs: 68 mOhm @ 3.7A, 4.5V
