Same model may have multiple batches, images only for reference.

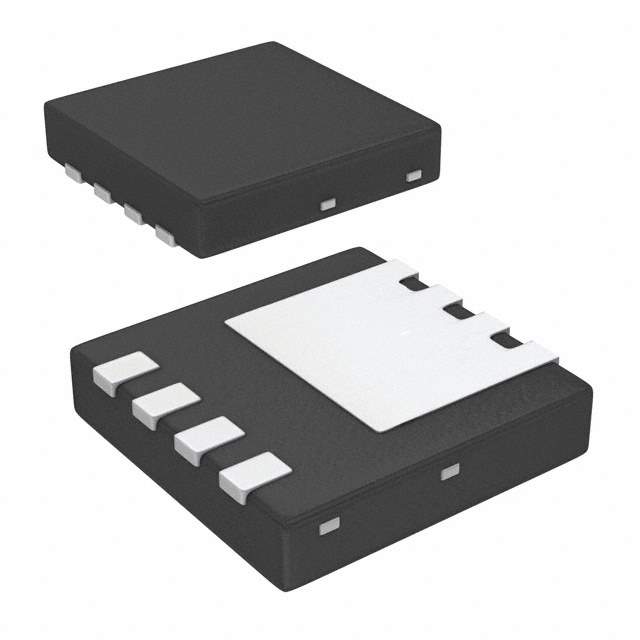

FDMC8010ET30 Real Image
Same model may have multiple batches, images only for reference.

FDMC8010ET30

Part No FDMC8010ET30
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 30A 8-PQFN
Datasheet
FDMC8010ET30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 30A (Ta), 174A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.5V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 94nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 5860pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.8W (Ta), 65W (Tc)
Rds On (Maximum) @ Id, Vgs 1.3 mOhm @ 30A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package Power33
Package 8-PowerWDFN
Win Source Part Number 774475-FDMC8010ET30
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMC8010ET30 CAD Model

Description

The Fairchild/ON Semiconductor FDMC8010ET30 is a medium popularity electronic component.

  • Application: Discrete Semiconductor Products
  • Technology: MOSFET
  • Series: PowerTrench
  • Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 174A (Tc)
  • Power Dissipation (Maximum): 2.8W (Ta), 65W (Tc)
