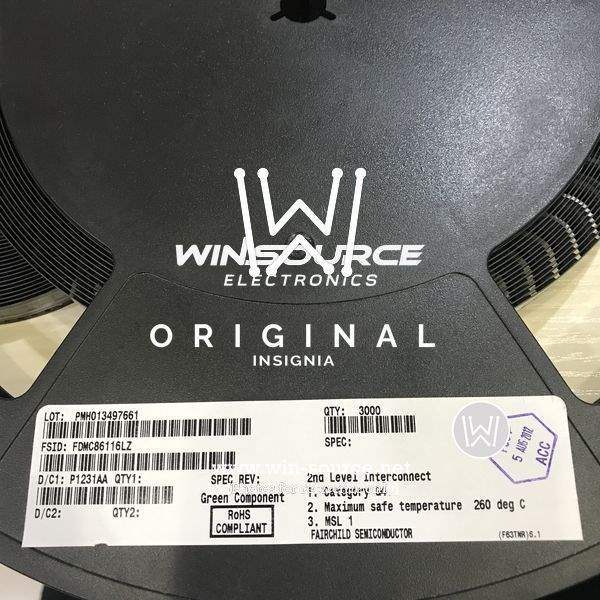

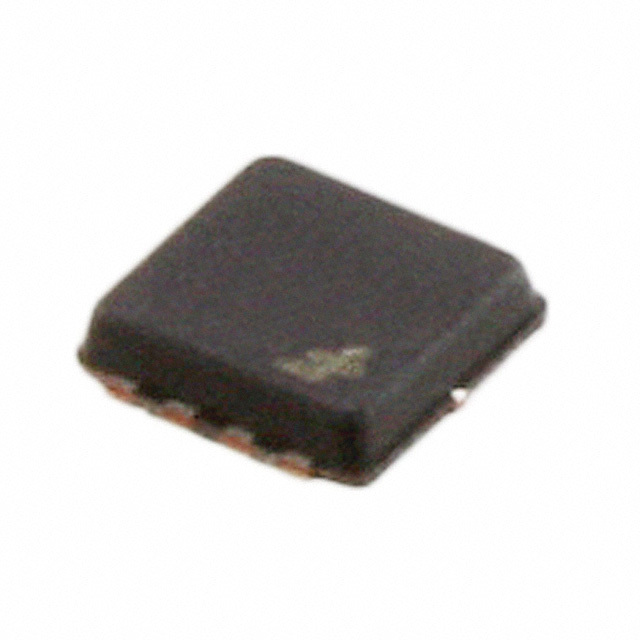

FDMC86116LZ Fairchild/ON Semiconductor FDMC86116LZ Real Image FDMC86116LZ label picture FDMC86116LZ Real Image
Same model may have multiple batches, images only for reference.
FDMC86116LZ Fairchild/ON Semiconductor FDMC86116LZ Real Image FDMC86116LZ label picture FDMC86116LZ Real Image
FDMC86116LZ Fairchild/ON Semiconductor FDMC86116LZ Real Image FDMC86116LZ label picture FDMC86116LZ Real Image
Same model may have multiple batches, images only for reference.

FDMC86116LZ

Part No FDMC86116LZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 3.3A 8-MLP
Datasheet
FDMC86116LZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 3.3A (Ta), 7.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.2V @ 250μA
Max Gate Charge 6nC @ 10V
Max Input Capacitance 310pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.3W (Ta), 19W (Tc)
Maximum Rds On at Id,Vgs 103 mOhm @ 3.3A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (3.3x3.3)
Dimension 8-PowerWDFN
Win Source Part Number 016041-FDMC86116LZ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name FDMC86116LZ
Introduction Date September 17, 2010
ECCN EAR99
Country of Origin Philippines, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMC86116LZ CAD Model

Description

The Fairchild/ON Semiconductor FDMC86116LZ is a MOSFET transistor with an N-Channel polarity. The supply and demand status is Balance and there are 3k pcs per package.

  • Maximum Power Dissipation: 2.3W (Ta), 19W (Tc)
  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current: 3.3A (Ta), 7.5A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.2V @ 250μA
  • Maximum Gate Charge: 6nC @ 10V
  • Maximum Input Capacitance: 310pF @ 50V
  • Maximum Rds On: 103 mOhm @ 3.3A, 10V
