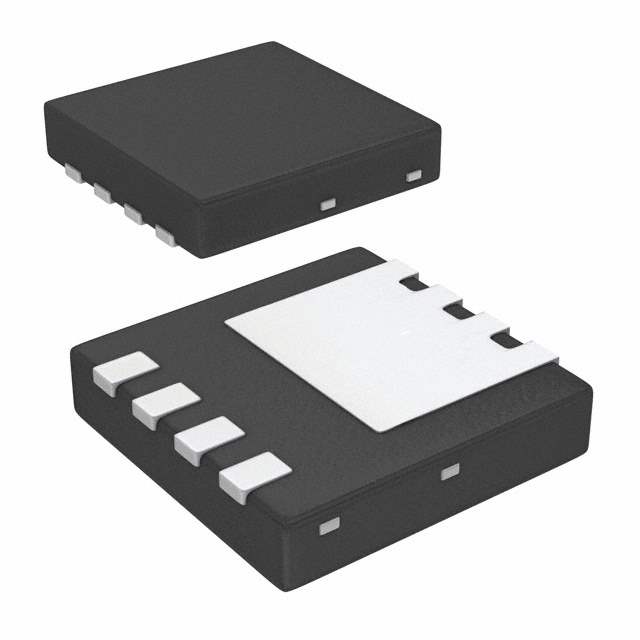

FDMC86570L Real Image
Same model may have multiple batches, images only for reference.

FDMC86570L

Part No FDMC86570L
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 56A POWER33
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 18A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 88nC @ 10V
Max Input Capacitance 6705pF @ 30V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.3W (Ta), 54W (Tc)
Maximum Rds On at Id,Vgs 4.3 mOhm @ 18A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Power33
Dimension 8-PowerWDFN
Win Source Part Number 135331-FDMC86570L
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMC86570L CAD Model

Description

It is a MOSFET with N-Channel polarity.

  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 18A (Ta), 56A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 3V @ 250μA
  • Maximum Gate Charge: 88nC @ 10V
  • Maximum Input Capacitance: 6705pF @ 30V
  • Case/Package: Power33 / 8-PowerWDFN
  • Mounting: SMD (SMT)
  • Power Dissipation (Max): 2.3W (Ta), 54W (Tc)
  • Drive Voltage: 4.5V, 10V (Max Rds On, Min Rds On)
  • Operating Temperature: -55°C to 150°C (TJ)
  • Quantity per Package: 3k pcs
