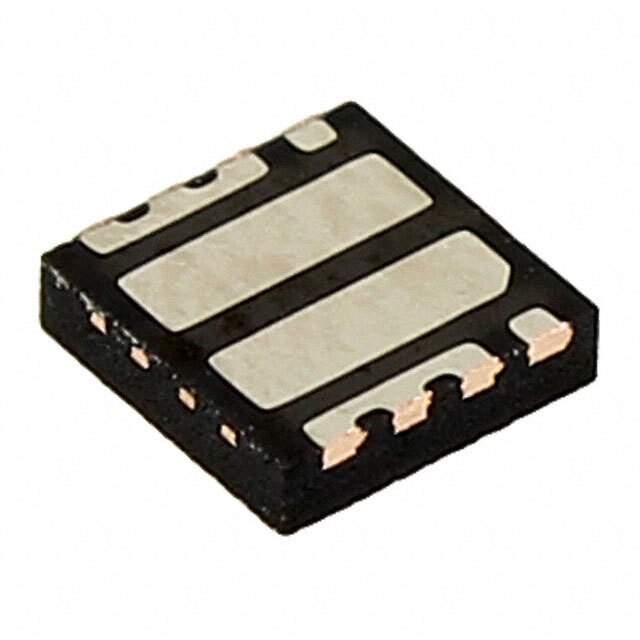

Same model may have multiple batches, images only for reference.

FDMC89521L

Name: FDMC89521L
Brand: Fairchild/ON Semiconductor
SKU: 453263
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	FDMC89521L
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET 2N-CH 60V 8.2A POWER33
Datasheet	FDMC89521L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Logic Level Gate
Drain-Source Breakdown Voltage	60V
Continuous Drain Current at 25°C	8.2A
Maximum Rds On at Id,Vgs	17 mOhm @ 8.2A, 10V
Gate-Source Threshold Voltage	3V @ 250μA
Max Gate Charge	24nC @ 10V
Max Input Capacitance	1635pF @ 30V
Maximum Power Dissipation	800mW
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-Power33 (3x3)
Win Source Part Number	1038214-FDMC89521L
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	FDMC89521L
ECCN	EAR99
Country of Origin	Thailand
Halogen Free	Compliant
Estimated EOL Date	2026
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDMC89521L CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FDMC89521L is a dual N-channel asymmetrical FET with a logic level gate.

Package: 8-Power33 (3x3)
Temperature Range: -55°C to 150°C
Power Dissipation: 800mW
Drain-Source Breakdown Voltage: 60V
Continuous Drain Current: 8.2A @ 25°C
Gate-Source Threshold Voltage: 3V @ 250μA
Gate Charge: 24nC @ 10V
Maximum Rds On @ Id,Vgs: 17 mOhm @ 8.2A, 10V
Supply and Demand: Balanced
Package Quantity: 3k pcs
