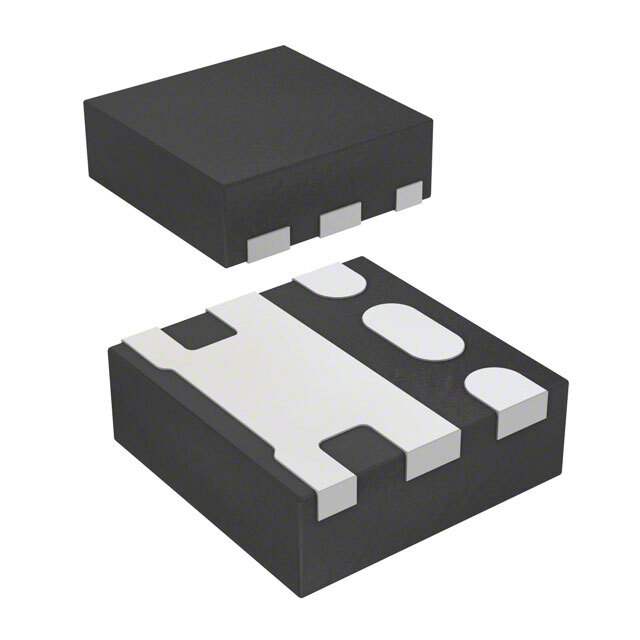

FDME510PZT Real Image
Same model may have multiple batches, images only for reference.

FDME510PZT

Part No FDME510PZT
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 6-MICROFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 22nC @ 4.5V
Max Input Capacitance 1490pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 2.1W (Ta)
Maximum Rds On at Id,Vgs 37 mOhm @ 6A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package MicroFet 1.6x1.6 Thin
Dimension 6-PowerUDFN
Win Source Part Number 122492-FDME510PZT
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FDME510PZT CAD Model

Description

The Fairchild/ON Semiconductor FDME510PZT is a P-channel MOSFET discrete semiconductor product.

  • Polarity: P-Channel
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 6A @ 25°C
  • Maximum Rds On: 37 mOhm @ 6A, 4.5V
  • Operating Temperature: -55°C to 150°C
  • Package: MicroFet 1.6x1.6 Thin 6-PowerUDFN
  • Package Quantity: 5k pcs
