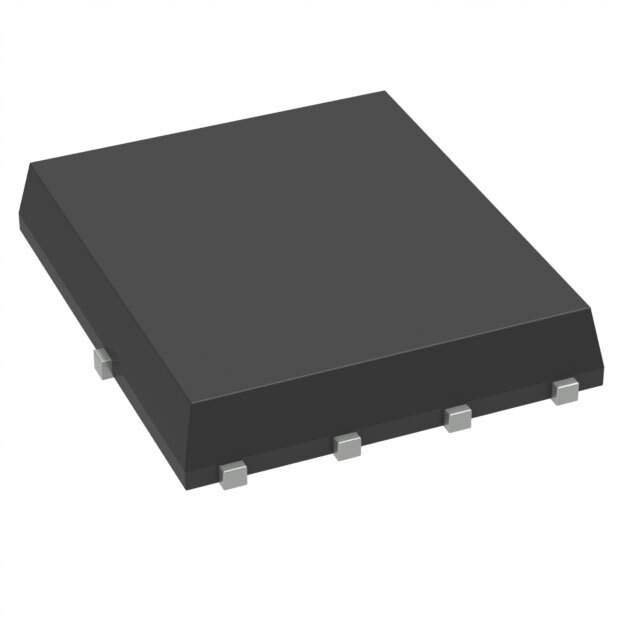

FDMS0309AS

Name: FDMS0309AS
Brand: Fairchild/ON Semiconductor
SKU: 129428
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FDMS0309AS
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 21A PT8
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	21A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	3V @ 1mA
Max Gate Charge	47nC @ 10V
Max Input Capacitance	3000pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	2.5W (Ta), 50W (Tc)
Maximum Rds On at Id,Vgs	3.5 mOhm @ 21A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-PQFN (5x6), Power56
Dimension	8-PowerTDFN
Win Source Part Number	016055-FDMS0309AS
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDMS0309AS CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FDMS0309AS is an N-channel MOSFET.

Power Dissipation: 2.5W (Ta), 50W (Tc)
Drain-Source Breakdown Voltage: 30V
Mounting: SMD (SMT)
Package: 8-PQFN (5x6), Power56
Maximum Rds On: 3.5 mOhm @ 21A, 10V
Continuous Drain Current (25°C): 21A (Ta), 49A (Tc)
Gate-Source Threshold Voltage: 3V @ 1mA
Maximum Gate Charge: 47nC @ 10V
Maximum Input Capacitance: 3000pF @ 15V
Operating Temperature Range: -55°C to 150°C (TJ)
Popularity: Medium
Supply and Demand: Sufficient
Quantity: 3k pcs
