Same model may have multiple batches, images only for reference.

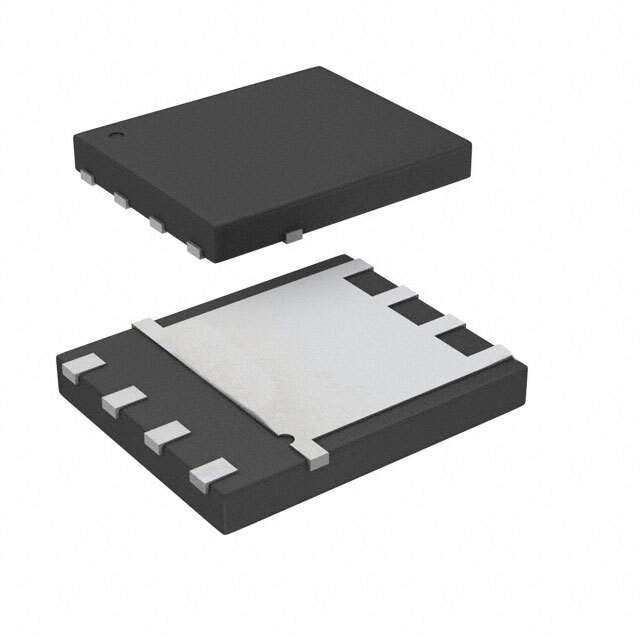

FDMS86550 Real Image
Same model may have multiple batches, images only for reference.

FDMS86550

Part No FDMS86550
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel PowerTrench MOSFET
Datasheet
FDMS86550 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench
Packaging Reel - TR
Channel Type Type N
Technology MOSFET
Drain Source Voltage 60V
Current - Continuous Drain (Id) @ 25°C 32A (Ta), 155A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 8V, 10V
Vgs(th) (Maximum) @ Id 4.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 154nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 11530pF @ 30V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.7W (Ta), 156W (Tc)
Rds On (Maximum) @ Id, Vgs 1.65 mOhm @ 32A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package Power56
Package 8-PowerTDFN
Win Source Part Number 1173851-FDMS86550
Manufacturer Homepage www.fairchildsemi.com
Family Name FDMS86550
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMS86550 CAD Model

Description

The FDMS86550 is a PowerTrench MOSFET that is manufactured by Fairchild/ON Semiconductor.

  • Application: Discrete semiconductor products
  • Package: 8-PowerTDFN
  • Mounting: SMD technology
  • Drain-Source Voltage: 60V
  • Gate-Source Threshold Voltage: 4.5V @ 250μA
  • Rds On: 1.65 mOhm @ 32A and 10V
  • Gate Charge: 154nC @ 10V
  • Input Capacitance: 11530pF @ 30V
  • Power Dissipation: 2.7W (Ta) and 156W (Tc)
  • Supply and Demand Status: Limited
