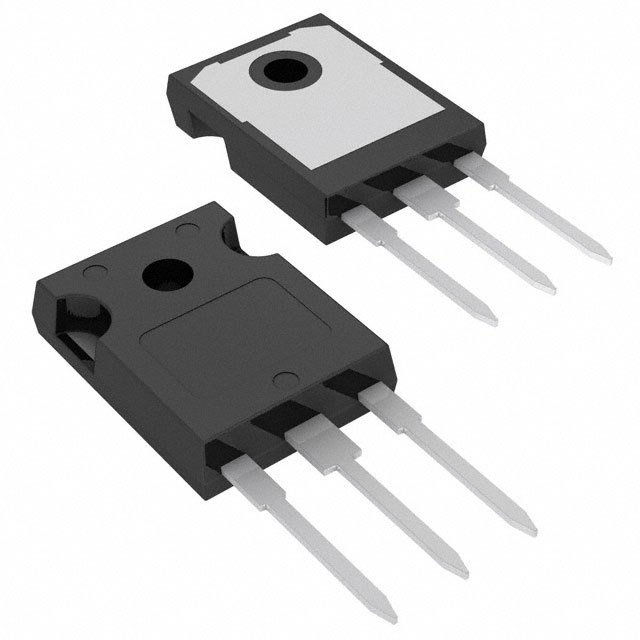

FGH40T65SHDF Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FGH40T65SHDF

Part No FGH40T65SHDF
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 650V 80A 268W TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
IGBT Type Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 650V
Maximum Current Collector 80A
Pulsed Collector Current 120A
Collector-emitter saturation voltage(Max) 1.81V @ 15V, 40A
Maximum Power Dissipation 268W
Total Switching Energy(Ets) 1.22mJ (on), 440μJ (off)
Input Type Standard
Gate Charge 68nC
Turn-on and Turn-off delay time 18ns/64ns
Testing Conditions 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) 101ns
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Win Source Part Number 204180-FGH40T65SHDF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FGH40T65SHDF CAD Model

Description

The Fairchild/ON Semiconductor FGH40T65SHDF is an electronic component designed for various applications with a balanced supply and demand.

  • Package: TO-247-3
  • Maximum Collector Current: 80A
  • Collector-Emitter Saturation Voltage (Max): 1.81V @ 15V, 40A
  • Total Switching Energy (Ets): 1.22mJ (on), 440μJ (off)
  • Turn-On/Turn-Off Delay Time: 18ns/64ns
