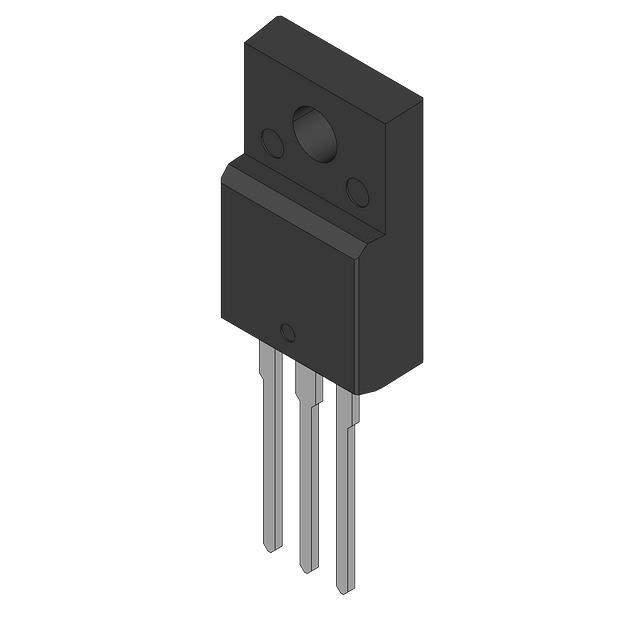

The FQPF65N06 is an N-Channel MOSFET manufactured by Fairchild/ON Semiconductor. It is designed for high-speed switching applications with a low on-resistance, making it suitable for various power management and switching circuits. This MOSFET is commonly used in applications where efficiency and reliability are critical.

Applications:

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Motor control
• Uninterruptible power supplies (UPS)
• Power inverters

Features:

• N-Channel MOSFET
• Low on-resistance (RDS(on))
• High-speed switching
• Avalanche energy rated
• High current capability
• Easy to drive

Benefits:

• Improved efficiency due to low RDS(on)
• Reduced power dissipation
• Enhanced thermal performance
• Reliable operation in demanding conditions
• Simplified drive circuitry
• Suitable for high-frequency applications

Additional Details:

The FQPF65N06's low on-resistance minimizes conduction losses, contributing to higher overall efficiency in power conversion circuits. Its fast switching speeds enable it to be used effectively in high-frequency applications. The avalanche energy rating enhances its robustness and ability to withstand transient voltage conditions. The MOSFET's easy-to-drive characteristics simplify the design and implementation process.

This MOSFET is designed to meet the requirements of modern power management systems, offering a balance of performance, efficiency, and reliability. It is commonly used in applications where minimizing power loss and maximizing efficiency are critical design considerations.
