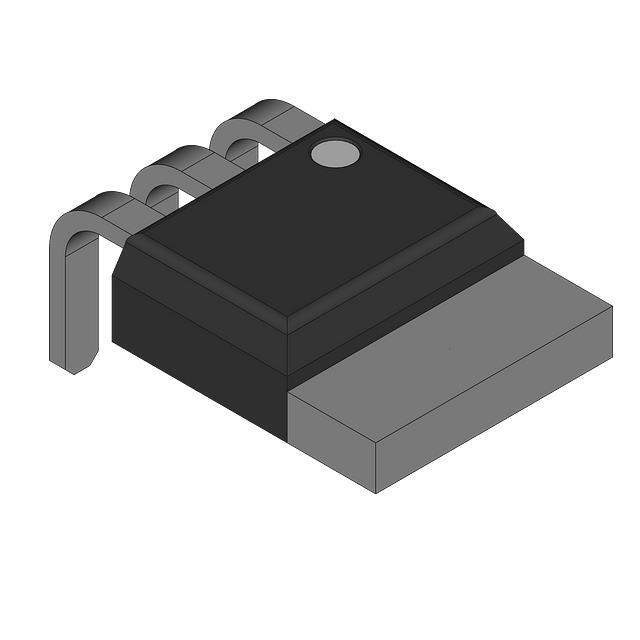

The Fairchild/ON Semiconductor 1039995-FQU3N50CTU is an N-channel MOSFET.

• Maximum Power Dissipation: 35W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Drain-Source Breakdown Voltage: 500V
• Continuous Drain Current @ 25°C: 2.5A (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate Charge: 13nC @ 10V
• Maximum Rds On @ Id, Vgs: 2.5 Ohm @ 1.25A, 10V
• Case/Package: I-Pak
• Dimensions: TO-251-3 Short Leads, IPak, TO-251AA
• Temperature Range: -55°C to 150°C (TJ)
• Popularity: Medium
• Supply and Demand Status: Sufficient
• Package Quantity: 5,040
