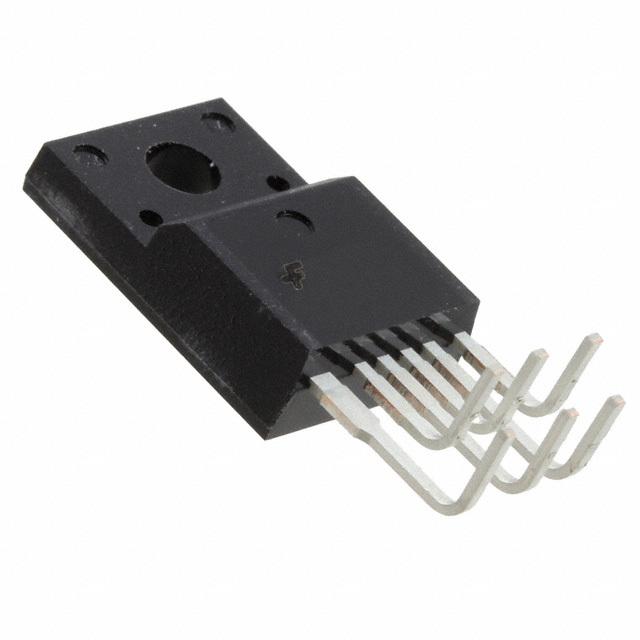

FSQ0565RSWDTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSQ0565RSWDTU

Part No FSQ0565RSWDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description Green-Mode Fairchild Power Switch (FPS) for Quasi-Resonant Operation - Low EMI and High Efficiency
Datasheet
FSQ0565RSWDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series FPS
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 12V
Supply Voltage 8 V ~ 20 V
Frequency - Switching 48kHz ~ 67kHz
Power (Watts) 80W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features Sync
Operating Temperature Range -25°C ~ 85°C (TA)
Package TO-220-6 Full Pack, Formed Leads
Manufacturer Package TO-220-6L (W-Forming)
Mounting SMD
Manufacturer Homepage www.fairchildsemi.com
Win Source Part Number 738309-FSQ0565RSWDTU
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Family Name FSQ0565RS
Introduction Date January 23, 2009
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FSQ0565RSWDTU CAD Model

Description

The Fairchild/ON Semiconductor FSQ0565RSWDTU is an isolated flyback switch mode power supply (SMPS) integrated circuit (IC) with a voltage breakdown of 650V.

  • Output Power: 80W
  • Supply Voltage: 8 V ~ 20 V
  • Switching Frequency: 48kHz ~ 67kHz
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
  • Sync Control: Yes
  • Package: TO-220-6 Full Pack, Formed Leads
  • Supply and Demand Status: Limited
  • Packaging: Tube
