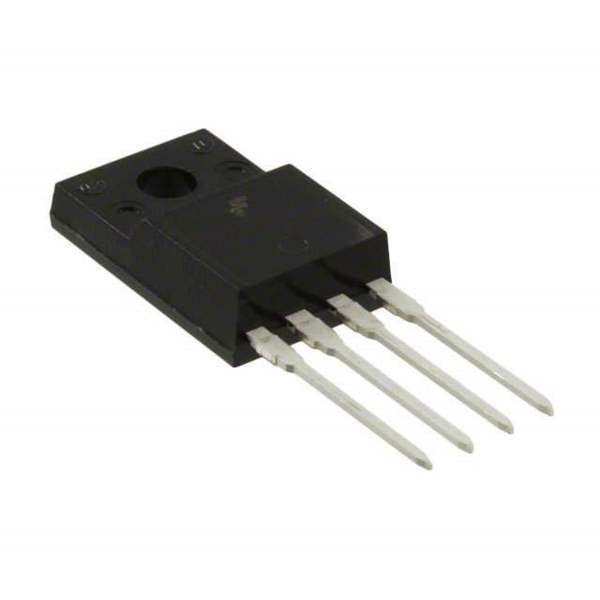

KA78R15CTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

KA78R15CTU

Part No KA78R15CTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 15V 1A TO220F-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 15V
Dropout Voltage-Max 0.5V @ 1A
Output Current 1A
Operating Supply Current 10mA
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 15V
Voltage - Dropout (Typical) 0.5V @ 1A
Mounting Through Hole
Case / Package TO-220F-4L
Win Source Part Number 070417-KA78R15CTU
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian KA78R15CTU CAD Model

Description

The Fairchild/ON Semiconductor KA78R15CTU is a positive fixed regulator with a nominal output voltage of 15V.

  • Dropout Voltage: 0.5V @ 1A
  • Number of Regulators: Single
  • Control Feature: Enable control
  • Output Type: Fixed
  • Output Current: 1A
  • Package: TO-220F-4L
  • Maximum Input Voltage: 35V
  • Protection Features: Over-current, over-temperature, over-voltage, and short circuit
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1k pcs
