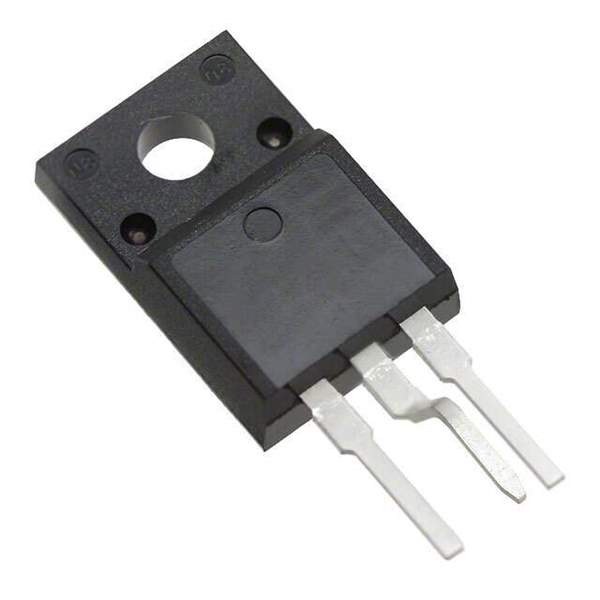

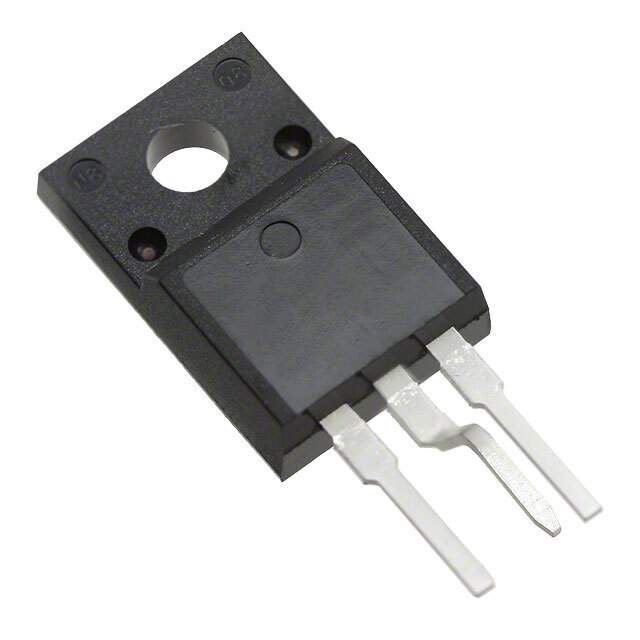

The KSD2012YYDTU is a NPN Epitaxial Silicon Transistor designed for amplifier and high-speed switching applications. This transistor offers excellent performance characteristics and is suitable for a wide range of electronic circuits.

Applications

• Amplifier Circuits
• High-Speed Switching
• Driver Stages
• General Purpose Switching
• Consumer Electronics

Features

• High Collector Current (IC = 2A)
• Low Saturation Voltage (VCE(sat) = 0.5V (Max) @ IC = 2A)
• High Transition Frequency (fT = 100 MHz (Typ))
• Complementary to KSB1366
• Epitaxial Silicon Structure

Benefits

• Provides high gain and linearity in amplifier applications
• Enables fast and efficient switching in high-speed circuits
• Reduces power dissipation with low saturation voltage
• Offers a reliable and cost-effective solution for various applications
• Easy to use in complementary circuits with KSB1366

Additional Details

The KSD2012YYDTU transistor is manufactured using an epitaxial silicon process, which ensures high performance and reliability. Its high collector current capability makes it suitable for driving moderate loads. The low saturation voltage minimizes power dissipation and improves efficiency. The high transition frequency enables its use in high-speed switching circuits. It comes in a standard TO-252 package for easy mounting and thermal management.
