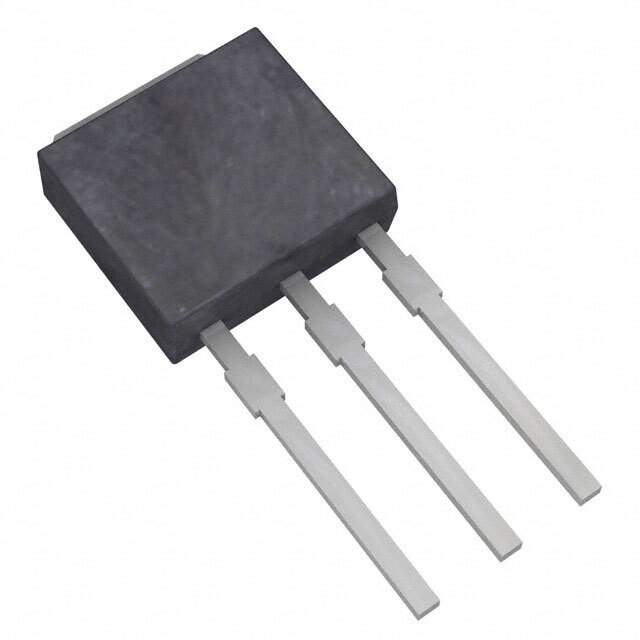

The KSH44H11I is a silicon NPN Darlington transistor manufactured by Fairchild Semiconductor (now ON Semiconductor). It is designed for general-purpose amplifier and switching applications requiring high gain and moderate power handling.

Applications

• General-purpose amplification
• Switching circuits
• Relay drivers
• Solenoid drivers
• Audio amplifiers

Features

• NPN Darlington Transistor
• High Collector-Emitter Voltage: VCEO = 80V
• Collector Current: IC = 4A
• High DC Current Gain: hFE = 2000 (minimum)
• Low Saturation Voltage
• Package: TO-220

Benefits

• High Gain: The high DC current gain simplifies circuit design and reduces the drive current requirements.
• Moderate Power Handling: Suitable for a variety of general-purpose applications.
• Low Saturation Voltage: Minimizes power dissipation and improves efficiency.
• Easy to Mount: The TO-220 package provides ease of mounting and heat sinking.
• Reliable Performance: Designed for reliable operation in various environments.

Additional Details

The KSH44H11I Darlington transistor is designed for applications needing substantial current gain. The Darlington configuration allows the transistor to switch larger currents with a smaller base current, enhancing its efficiency in relay and solenoid driver circuits. Its high collector-emitter voltage rating ensures it can operate safely in moderate voltage conditions. The TO-220 package facilitates easy mounting to a heat sink, aiding in heat dissipation during operation. The device is commonly used in audio amplifier output stages and switching circuits where high current gain is beneficial. The robust design of the KSH44H11I ensures consistent and reliable performance in diverse operating conditions.
