Same model may have multiple batches, images only for reference.

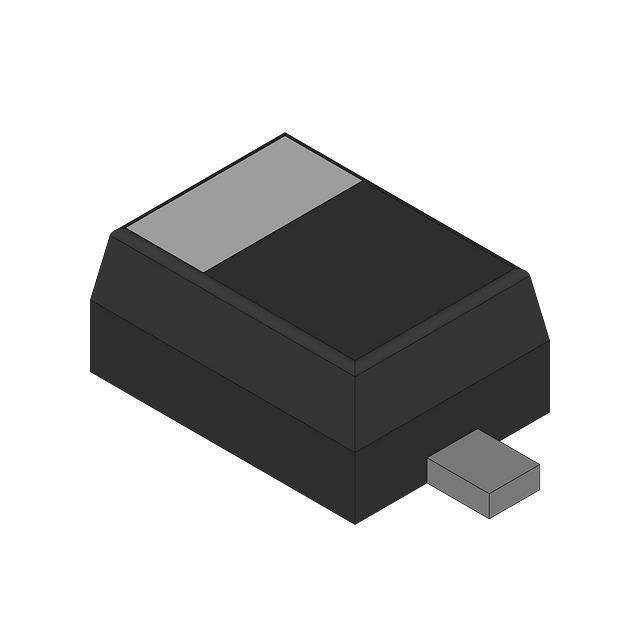

MBR0530 Real Image
Same model may have multiple batches, images only for reference.

MBR0530

Part No MBR0530
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 500MA SOD123
Datasheet
MBR0530 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 430mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 130μA @ 30V
Mounting SMD (SMT)
Case / Package SOD-123
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 022371-MBR0530
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MBR0530 CAD Model

Description

The MBR0530 is a Schottky diode manufactured by Fairchild/ON Semiconductor.

  • Manufacturer: Fairchild/ON Semiconductor
  • Type: Schottky diode
  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 500mA
  • Forward Voltage: 430mV @ 500mA
  • Reverse Leakage Current: 130μA @ 30V
  • Package: SOD-123
  • Packaging: Reel of 3k pcs
  • Application: Applications that require a Schottky diode
