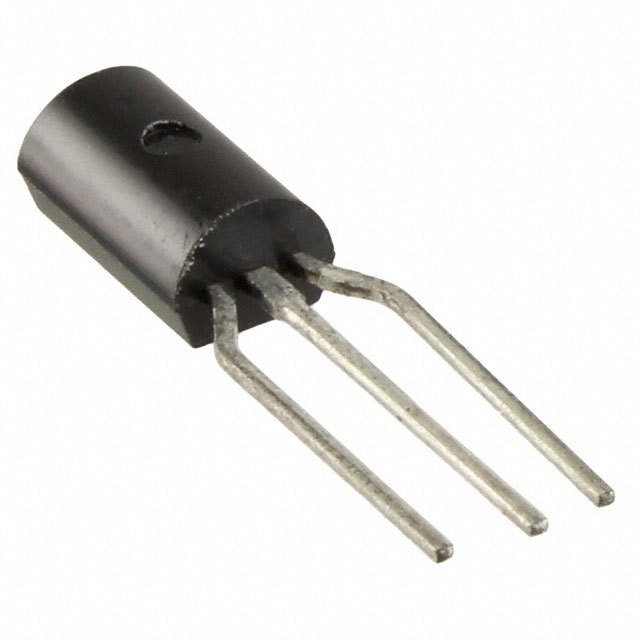

TN6714A Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

TN6714A

Part No TN6714A
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 30V 2A TO-226
Datasheet
TN6714A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 2A
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Max Vce (sat) 500mV @ 100mA, 1A
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 50 @ 1A, 1V
Maximum Power Dissipation 1W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-226
Win Source Part Number 1110816-TN6714A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian TN6714A CAD Model

Description

The Fairchild/ON Semiconductor TN6714A is an NPN transistor with a maximum collector-emitter breakdown voltage of 30V and a maximum current collector of 2A.

  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Current Collector: 2A
  • Collector Cut-Off Current: 100nA
  • Typical Gain: 50 @ 1A and 1V
  • Maximum Power Dissipation: 1W
  • Package: TO-226 case
  • Mounting Type: Through hole
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
  • Package Contains: 1,500 pieces
