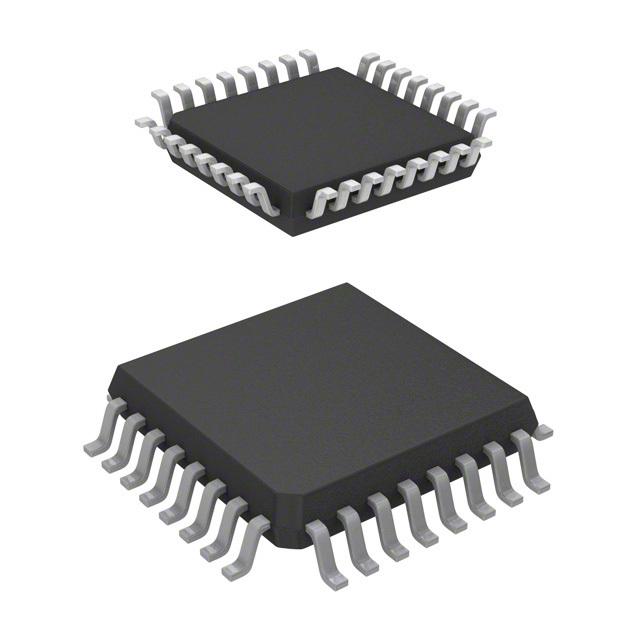

MC56F8023V Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC56F8023V

Part No MC56F8023V
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 32LQFP
Datasheet
MC56F8023V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor 56800E
Part Core Size 16-Bit
Speed(Frequency) 32MHz
Number of I/O 26
Program Memory Size 32KB (16K x 16)
Program Memory Type FLASH
Data RAM Size 2K x 16
Supply Voltage - Operating 3 V to 3.6 V
Data Converters A/D 6x12b; D/A 2x12b
Temperature Range - Operating -40°C to 105°C (TA)
Case / Package 32-LQFP (7x7)
Win Source Part Number 074529-MC56F8023V
Ultra Librarian 3D Model Ultra Librarian MC56F8023V CAD Model

Description

The NXP MC56F8023V is a 32-bit integrated circuit with a program memory size of 32KB (16K x 16) and a program memory type of FLASH.

  • Program Memory Size: 32KB (16K x 16)
  • Program Memory Type: FLASH
  • Core Processor: 56800E
  • I/O: 26
  • Data Converters: 6x12b A/D converters and 2x12b D/A converters
  • Supply Voltage: 3V to 3.6V
  • Data RAM Size: 2K x 16
  • Package: Tray
  • Temperature Range: -40°C to 105°C (TA)
