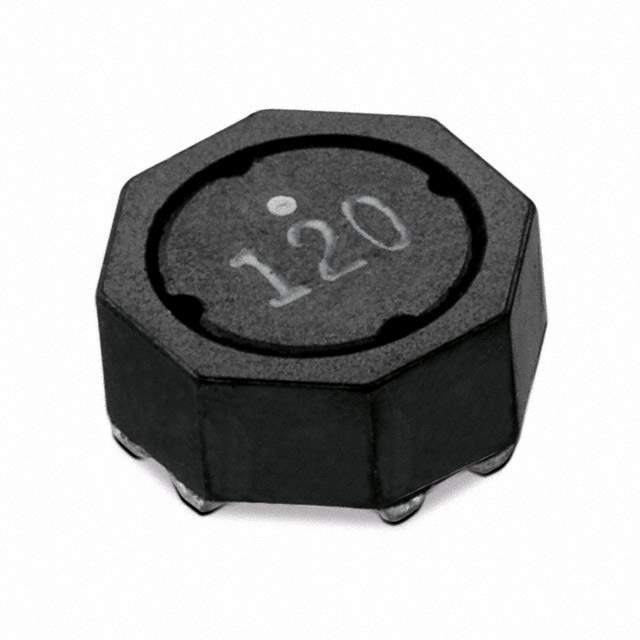

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Manufacturer Würth Elektronik
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 22 µH
Inductance - Connected In Series 88 µH
Tolerance ±20%
Current Rating - Parallel 1 A
Current Rating - Series 500 mA
Current Saturation - Parallel 1.8 A
Current Saturation - Series 900 mA
DC Resistance (DCR) - Parallel 228mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height 0.150" (3.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-2609-6,732-2609-1,732-2609-2
Standard Package 350
Win Source Part Number 1327602-74489440220
Ultra Librarian 3D Model Ultra Librarian 74489440220 CAD Model

Description

This electronic component is an array signal transformer belonging to the inductors, coils, chokes category. It is a product manufactured by Würth Elektronik and has a reel - TR packaging.

  • Shielded: Yes
  • Size / Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Package: 350
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • Number of Coils: 2
  • Inductance: 88 µH (connected in series) and 22 µH (connected in parallel)
  • Current Rating: 500 mA (series) and 1 A (parallel)
  • Current Saturation: 900 mA (series) and 1.8 A (parallel)
  • DC Resistance (DCR): 228mOhm Max (parallel)
