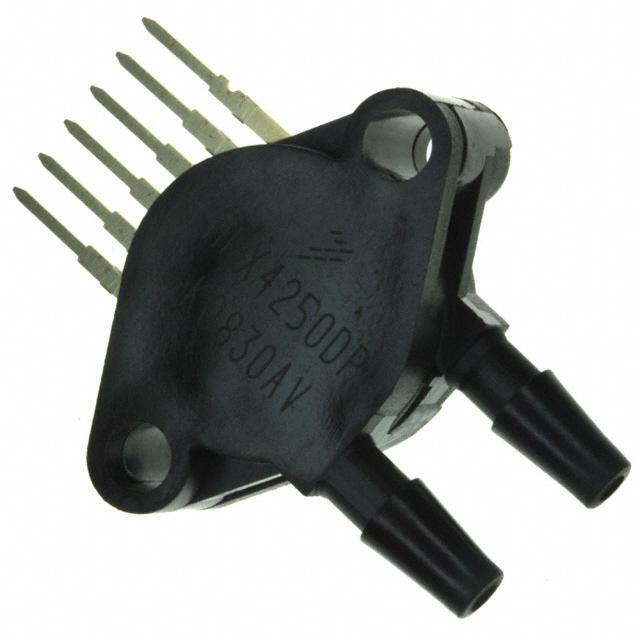

Same model may have multiple batches, images only for reference.

MPX4250DP

Name: MPX4250DP
Brand: Freescale Semiconductor - NXP
SKU: 240066
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

Part No	MPX4250DP
Manufacturer	Freescale Semiconductor - NXP
Catalog	Pressure Sensors, Transducers
Description	SENSOR DIFF PRESS 36 PSI MAX
Datasheet	MPX4250DP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Sensors, Transducers
Manufacturer	NXP
Status	Active
Pressure Type	Differential
Operating Pressure	36.26 PSI (250 kPa)
Output Type	Analog Voltage
Output	0.2 V to 4.9 V
Accuracy	±1.4%
Supply Voltage - Operating	4.85 V to 5.35 V
Port Size	Male - 0.19" (4.93mm) Tube, Dual
Port Style	Barbed
Features	Temperature Compensated
Termination Style	PCB
Maximum Pressure	145.04 PSI (1000 kPa)
Temperature Range - Operating	-40°C to 125°C
Win Source Part Number	085481-MPX4250DP
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Quantity per package	100
Ultra Librarian 3D Model	Ultra Librarian MPX4250DP CAD Model

Description

The MPX4250DP is a differential pressure sensor from NXP, designed for various applications.

Output: temperature-compensated output that ranges from 0.2V to 4.9V with an accuracy of ±1.4%
Pressure Range: 36.26 PSI (250 kPa)
Maximum Pressure: 145.04 PSI (1000 kPa)
Housing: barbed dual port style
Supply Voltage: 4.85V to 5.35V
Operating Temperature Range: -40°C to 125°C
Popularity: high
Supply and Demand Status: limited
