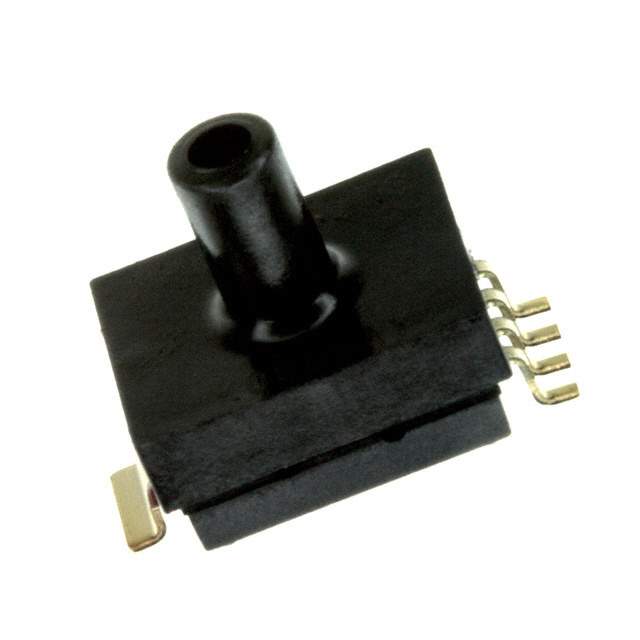

MPXM2053GS Real Image MPXM2053GS real image3644 MPXM2053GS Real Image
Same model may have multiple batches, images only for reference.
MPXM2053GS Real Image MPXM2053GS real image3644 MPXM2053GS Real Image
MPXM2053GS Real Image MPXM2053GS real image3644 MPXM2053GS Real Image
Same model may have multiple batches, images only for reference.

MPXM2053GS

Part No MPXM2053GS
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENS PRESSURE 7.25 PSI MAX MPAK
Datasheet
MPXM2053GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Vented Gauge
Operating Pressure 7.25 PSI (50 kPa)
Output Type Wheatstone Bridge
Output 0 mV to 40 mV (10V)
Accuracy -0.6% to 0.4%
Supply Voltage - Operating 10 V to 16 V
Port Size Male - 0.12" (2.97mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 29.01 PSI (200 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 5-MPAK
Win Source Part Number 024332-MPXM2053GS
Family Name MPXM2053G
Introduction Date October 26, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Motor Drive & Control, Robotics, Sensing & Instrumentation, Medical
Ultra Librarian 3D Model Ultra Librarian MPXM2053GS CAD Model

Description

The NXP 024332-MPXM2053GS is an active sensor/transducer electronic component with a high popularity and a balanced supply and demand status.

  • Feature: Temperature-compensated
  • Pressure Type: Vented gauge
  • Operating Pressure: 7.25 PSI (50 kPa)
  • Port Size: Male - 0.12" (2.97mm) tube
  • Output: 0 mV to 40 mV (10V)
  • Suitable for: Those who need a high-accuracy solution for their electronic projects, especially in the fields of motor drive & control, robotics, sensing & instrumentation, and medical.
