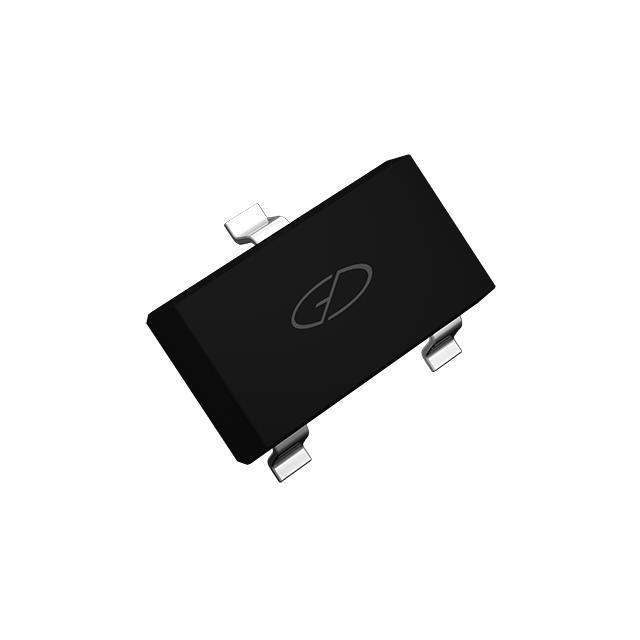

SSF2311S Real Image1 SSF2311S Real Image2
Same model may have multiple batches, images only for reference.
SSF2311S Real Image1 SSF2311S Real Image2
SSF2311S Real Image1 SSF2311S Real Image2
Same model may have multiple batches, images only for reference.

SSF2311S

Part No SSF2311S
Manufacturer GOOD-ARK Electronics
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET, P-CH, SINGLE, -4.7A, -20 / P-Channel 20 V 4.7A (Tc) 1.56W (Tc) Surface Mount SOT-23
Datasheet
SSF2311S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr GOOD-ARK Electronics
Series -
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 4.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 50mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id -
Gate Charge (Qg) (Max) @ Vgs 13 nC @ 4.5 V
Vgs (Max) ±10V
Input Capacitance (Ciss) (Max) @ Vds 1230 pF @ 10 V
FET Feature -
Power Dissipation (Max) 1.56W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23
Package / Case TO-236-3, SC-59, SOT-23-3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 3,000 pcs
Win Source Part Number 1383540-SSF2311S
Ultra Librarian 3D Model Ultra Librarian SSF2311S CAD Model

Description

The 1383540-SSF2311S is a P-Channel MOSFET transistor designed for various applications.

  • Drain to Source Voltage (Vdss): 20V
  • Continuous Drain Current (Id) @ 25°C: 4.7A
  • On-Resistance (Rds On) @ 3A, 4.5V: 50mOhm
  • Mounting Type: Surface Mount
  • Manufacturer: GOOD-ARK Electronics
