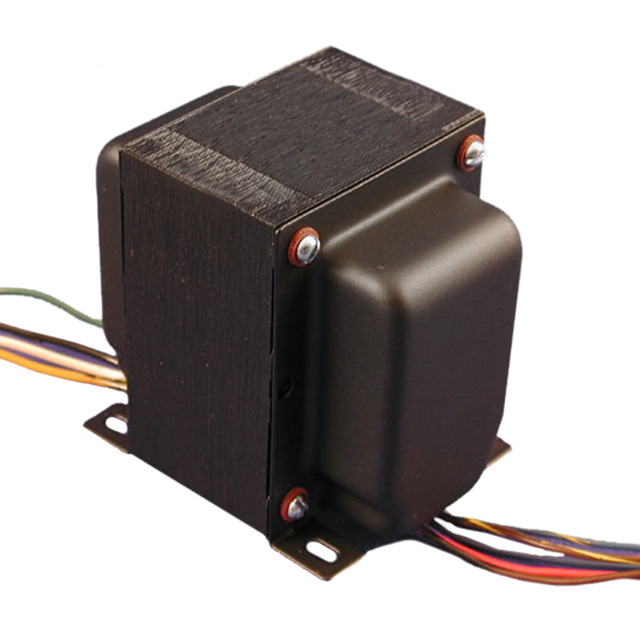

125ESE

Part No 125ESE
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description XFMR 2.5K-10K / 4-32 CHAS MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Impedance - Primary (Ohms) 2.5k ~ 10k
Impedance - Secondary (Ohms) 4 ~ 32
DC Resistance (DCR) - Primary 100.5Ohm
DC Resistance (DCR) - Secondary 590mOhm
Transformer Type General Purpose
Frequency Range 100Hz ~ 15kHz
Frequency Response ±1dB
Voltage - Isolation 1500V @ 1 Second
Power Level 15W
Mounting Type Chassis Mount
Size / Dimension 4.500" L x 2.360" W (114.30mm x 59.94mm)
Height - Seated (Max) 2.940" (74.68mm)
Termination Style Wire Leads
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1510968-125ESE
Ultra Librarian 3D Model Ultra Librarian 125ESE CAD Model

Description
