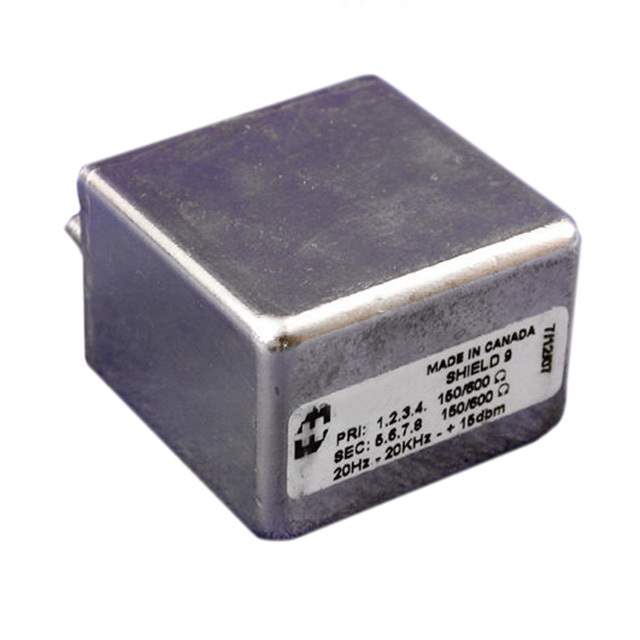

850L Real Image
Same model may have multiple batches, images only for reference.

850L

Part No 850L
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description TRANSFR AUDIO 5K/20K 150/600 IMP
Datasheet
850L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Hammond Manufacturing
Packaging Bulk
Status Active
Impedance - Primary (Ohms) 20k, 5k/5k
Impedance - Secondary (Ohms) 600, 150/150
DC Resistance (DCR) - Primary 2.24 kOhm
DC Resistance (DCR) - Secondary 69 Ohm
Transformer Type Broadcast Quality
Frequency Range 20Hz to 20kHz
Insertion Loss 1dB
Power Level 15dB
Mounting Chassis Mount
Height - Seated (Max) 1.650" (41.91mm)
Termination Style Solder Lug
Weight 0.4 lb (181.44g)
Win Source Part Number 1021882-850L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 850L CAD Model

Description

The 850L transformer is a broadcast quality transformer used in the industry manufactured by Hammond Manufacturing.

  • Height: 1.650" (41.91mm)
  • Mounting: Chassis
  • Frequency Range: 20Hz to 20kHz
  • Insertion Loss: 1dB
  • Primary Impedance: 20k, 5k/5k ohms
  • Secondary Impedance: 600, 150/150 ohms
  • DC Resistance (DCR) Primary: 2.24 kOhm
  • DC Resistance (DCR) Secondary: 69 Ohm
  • Power Level: 15dB
